Transformers with 2 Secondary Windings

Most part numbers link to a photo and (S) following a number indicates photo is of a different similar looking transformer.
Photos, determining spec's of unknown transformers, etc. is time consuming & often left until someone makes an enquiry so e-mail if more information is needed.  (M) following manufacture name indicates spec's are manufactures, otherwise spec's are based on core size and other parameters commonly used to determine unknown transformer spec's. Column SC is a core size code that's explained along with more about the spec's listed for unknown transformers in my Notes Regarding Transformer Spec's.
Sec's in RED can be wired in parallel for one with twice the current or in series for one with a CT and twice the voltage.
Secondary 1 Secondary 2 VA S
C		 Qty Transformer Pri. Notes   (LN = Like New) Cost
Number Manufacture

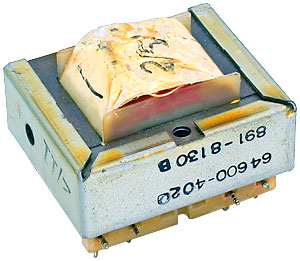

3V   12V 0.800A ≈10va C 1 64600-4020   120 For Fluorescent Displays    Schematic
0.28kg 1⅞" × 1½" × 1⅜"h

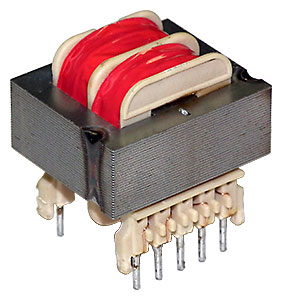

3V   18V 0.150A ≈3va A 1 HD3514   120 For Fluorescent Displays
0.12kg 1⅜" × 1⅛" × 1¼"h

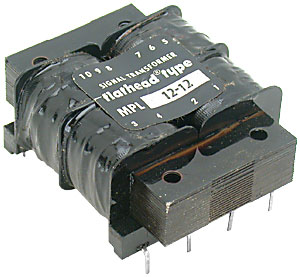

5VDC 0.270A 12VDC 0.085A 12va   3 MPL-12-12 Signal (M) 120 Sec's provide listed DC voltages. NEW
0.31kg 		$12
(75% list)

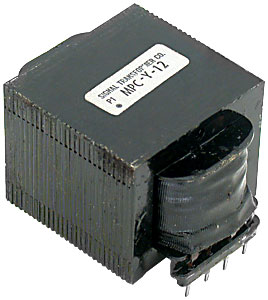

5VDC 0.835A 12VDC 0.150A 24va B 5 MPC-Y-12 Signal (M) 120 Sec's provide listed DC voltages. NEW
0.38kg 1⅝" × 2¼" × 1¼"h		 $13
(75% list)

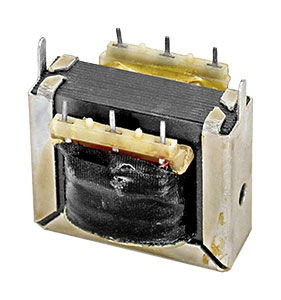

6.3V 0.800A 6.3V 0.800A 10va C 1 161K12 (S) Hammond (M) 120 0.28kg 1⅞" × 1½" × 1⅝"h $8
6.3V   40VCT   ≈40va G 1 71F076 (S)   120 1.16kg 2½" × 2⅝" × 3"h

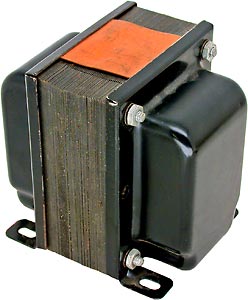

6.3V   50VCT   ≈110va H 1 965025B   120/240 2.00kg 2⅞" × 3⅝" × 3½"h

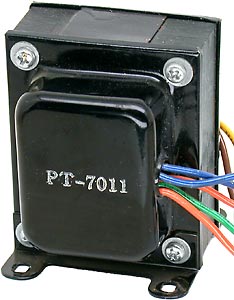

6.3V   58VCT   ≈35va G 1 PT-7011   120 1.30kg 2½" × 2⅞" × 3"h   LN $20

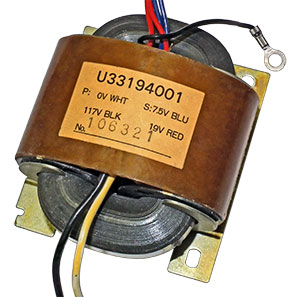

7.5V   19V       1 U33194001  (M - Volts Only) 117 0.62kg 3⅞" × 2¾" × 1¾"h   Toroid Core
7.5V   60VCT   ≈9va C 1 961357-1 (S) CBS 120/240 0.31kg 1⅞" × 1¾" × 1⅝"h
7.5VCT   30V   ≈12va D 1 67244 Hammond 120 0.46kg 2¼" × 2" × 1⅞"h NEW $10

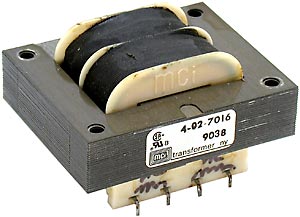

8V 2.250A 8V 2.250A 36va F 1 4-02-7016 MCI (M) 115/230 0.50kg 2⅝" × 2⅛" × 1½"h

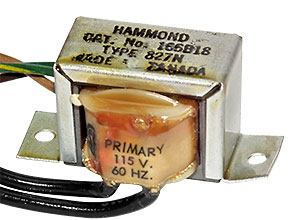

9V 0.030A 9V 0.030A 0.54va   1 166B18 Hammond (M) 120 0.05kg NEW

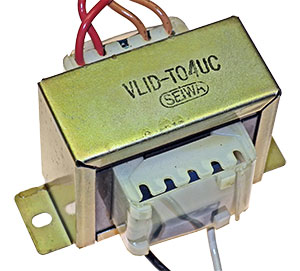

9V   23V   ≈35va F 1 VLID-TO4UC   120 0.90kg 2⅝" × 2⅜" × 2⅛"h

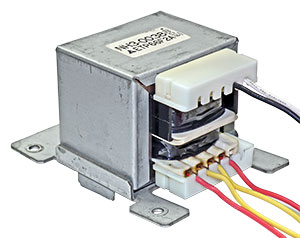

9V   27V   ≈100va F 1 NH3-0038 Mitsubishi 120 NH3-0038 / ETP66F2A
1.60kg 2⅝" × 3¼" × 2⅛"h

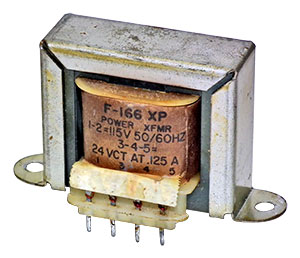

9VCT 0.500A 24VCT 0.125A 7.5va C 1 F-166XP Triad (M) 115 0.25kg 1⅞" × 1½" × 1⅝"h
10V   30VCT   ≈10va C 1 6275 Wabash 120 0.31kg 1⅞" × 1½" × 1⅝"h
10V   30VCT   ≈11va C 1 X1030 (S)   120/240 X1030 / 7442-0034-0300
0.31kg 1⅞" × 1½" × 1⅝"h

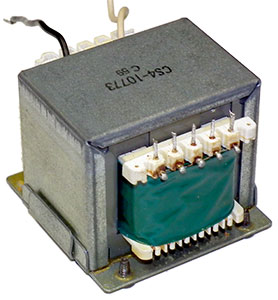

10V   96VCT   ≈90va F 1 CS4-10773   120 1.32Kg 2⅝" x 3" x 2⅛"h

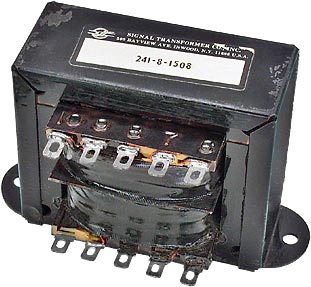

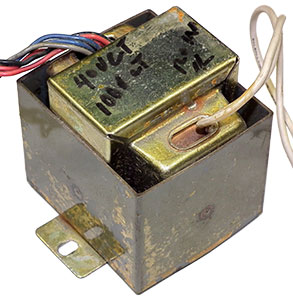

11V   40VCT   100va G 8 DP-241-8-1508 Signal (M - VA) 120 1.28kg 3" x 2¼" × 2½"h NEW $15 ea.

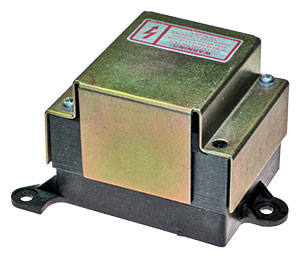

11V   20V   ≈24va F 1 T-3117D   120/240 0.79kg 2⅝" x 2⅛" × 2"h

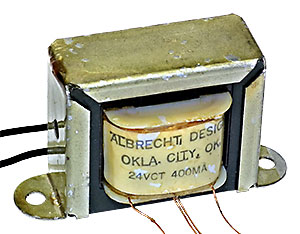

12V 0.400A 12V 0.400A 9.6va C 2 2X12 Albrecht (M) 120 0.30kg 1⅞" × 1½" × 1⅝"h
12V 0.450A 12V 0.450A 10va C 1 161G24 (S) Hammond (M) 120 0.27kg 1⅞" × 1½" × 1⅝"h

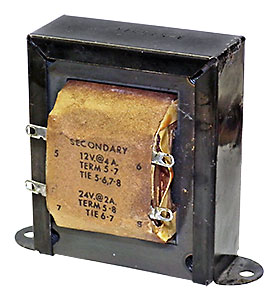

12V 2.000A 12V 2.000A 48va G 1 F-107Z Triad (M) 115/230 0.96kg 2½" x 2¼" × 3"h   NEW
12.6V 0.025A 12.6V 0.025A 0.63va   1 166A24 (S) Hammond (M) 120 0.06kg

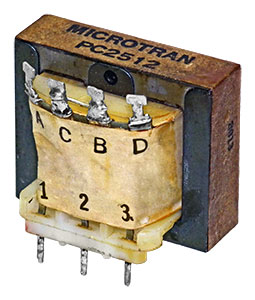

12.6V 0.060A 12.6V 0.060A 1.5va A 1 PC2512 Microtran (M) 115/230 0.09kg 1⅜" × 1⅛" × 1⅛"h
12.6V   50VCT   ≈180va J 1 TM170   120 2.50kg 3⅛" × 3⅜" x 3¾"h  Schematic

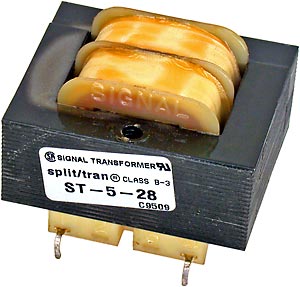

14V 0.420A 14V 0.420A 12va C 1 ST-5-28 Signal (M) 120 0.28kg 1⅞" × 1⅝" × 1½"h $6

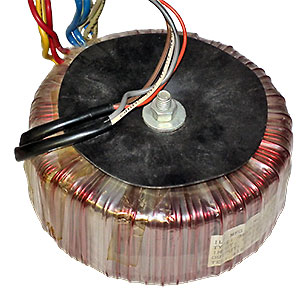

14V   26V   500va   1 8BLA464R1  (M - Volts & VA) 120/240 Toroid Core   Schematic
5.16kg 2½" dia. × 2¾"h

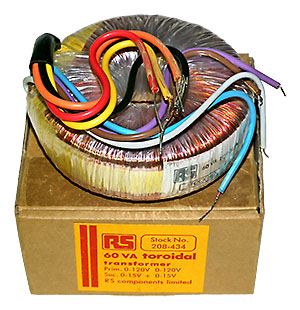

15V 2.000A 15V 2.000A 60va   1 208-434 RS Components (M) 120/240 Toroid Core
0.85kg 3⅜" dia. × 1¼"h   NEW

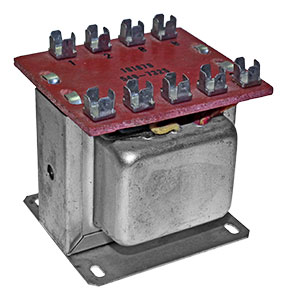

15V   50V   ≈40va G 2 181879   120 15V sec tapped at 4.4V
1.14Kg 3" x 2¾" x 2½"h
16V   18.4VCT     F 1 PEI-40007 (S) (M - Volts Only) 115 0.72kg 2⅝" × 2¼" × 2⅛"h
16VCT   30VCT   ≈90va G 1 113287 Hammond 120 1.38kg 3" x 2¾" × 2½"h   LN

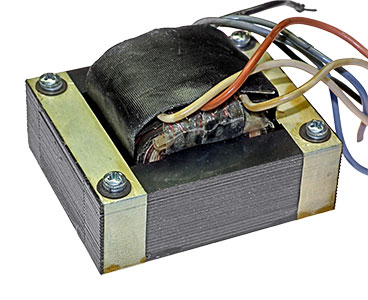

18V   25VCT   ≈40va G 1 FT-1386 Frost 120 0.95kg 3" x 2½" × 2"h

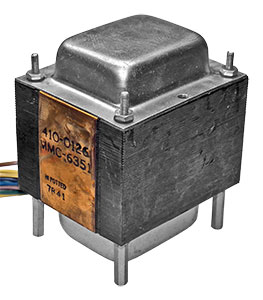

18VCT   36VCT   ≈400va J 2 410-0126 MMC 120/240 3.95kg 3¾" × 3⅛" × 4¾"h
18VCT   50VCT   ≈10va C 1 C141-013   120 Secondaries have Common C.T.
0.30kg 1⅞" × 1¾" × 1⅝"h

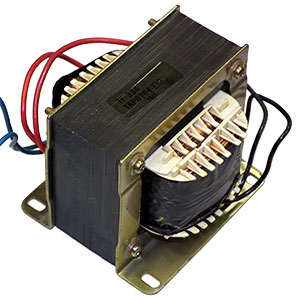

20V 4.000A 30V 1.000A ≈150va J 1 TF-334   120 2.68Kg 3¾" x 3⅛" x 3½"h
20V   30V   ≈30va E 1 24G030HD (S) TAMRADIO 120 0.76kg 2⅛" × 2¼" × 2½"h

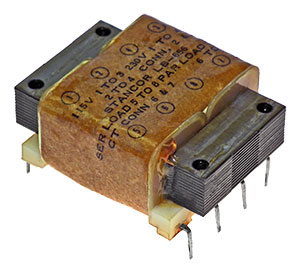

28V 0.100A 28V 0.100A 6va   2 LB-656 Stancor (M) 115/230 0.14kg 1⅞" × 1½" × ⅞"h  NEW

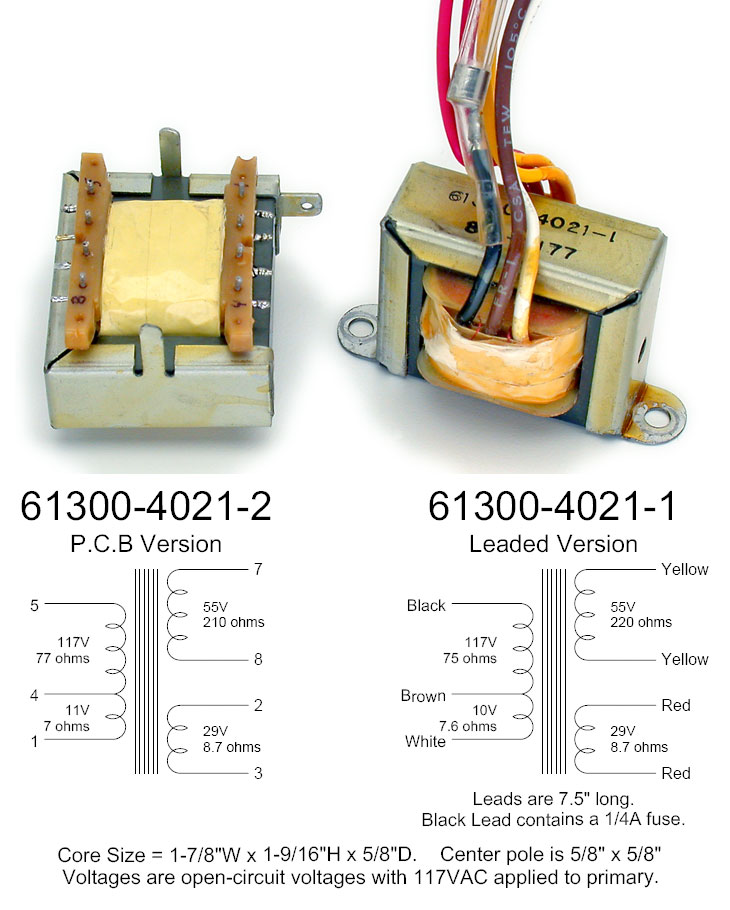

28V   50V   ≈8va C 1 61300-4021-1   120 50V for a Fluorescent Display
0.28kg 1⅞" × 1½" × 1⅝"h  Schematic		 $8
28VCT 0.420A 28V 0.420A 24va B 1 DPC-56-420 (S) Signal (M) 120/240 0.38kg 1⅝" × 2¼" × 1¼"h $10

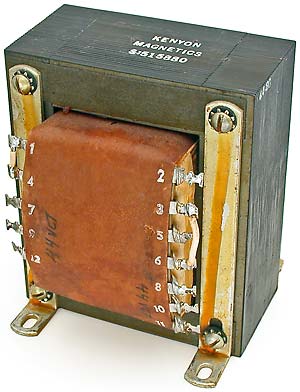

44VCT   44VCT

≈300va

 K 1 S-515880 Kenyon Magnetics 120/240 3.95Kg 3¾" x 3¾" x 4½"h  Schematic $20
