Transformers with 3 or More Secondary Windings


Most part numbers link to a photo and (S) following a number indicates photo is of a different similar looking transformer.
Photos, determining spec's of unknown transformers, etc. is time consuming & often left until someone makes an enquiry so e-mail if more information is needed.  (M) following manufacture name indicates spec's are manufactures, otherwise spec's are based on core size and other parameters commonly used to determine unknown transformer spec's. Column SC is a core size code that's explained along with more about the spec's listed for unknown transformers in my Notes Regarding Transformer Spec's.

Secondary VA S
C
Qty Transformer Pri. Notes Cost
1 2 3 4 5 6 Number Manufacture
2.9V
—
20VCT
—
29V
—

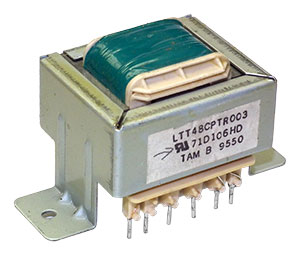

      ≈11va C 1 71D106HD   115/230 0.35kg 1⅞" × 1⅝" × 1¾"h
8.5V
500mA
20V
70 mA
30V
70 mA

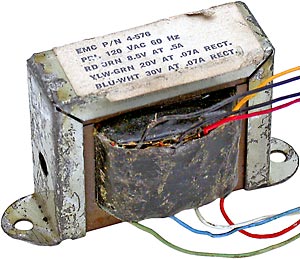

      7.8va D 1 4-576 EMC (M) 120 0.42kg 2¼" × 1⅝" × 1⅞"h
10V
—
10V
—
30V
—

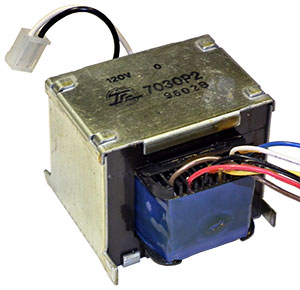

      ≈100va F 1 7030P2   120 1.63kg 2⅝" × 3½" × 2¼"h
10V
—
16V
—
16V
—

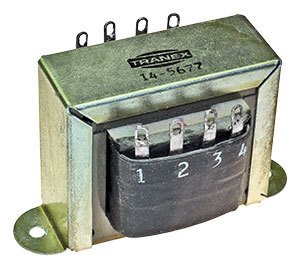

      ≈30va F 1 14-5677 Tranex 120 0.76kg 2⅝" × 2¼" × 2⅛"h
10V
—
20V
—
20V
—
      ≈100va H 2 99243 Hammond 120/240 Schematic
1.78kg 3⅜" × 2¾" × 3"h

16V
—
16V
—
16V
—

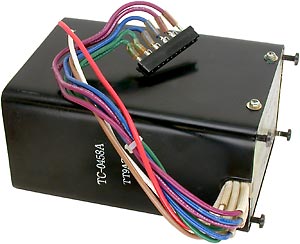

          1 TC-0458A Hitachi 120 From FP1011BU Color TV Camera
3.27kg 3⅞" × 2¾" × 5½"h    Schematic

5.0V
—
7.5V
—
14V
—
30VCT
—

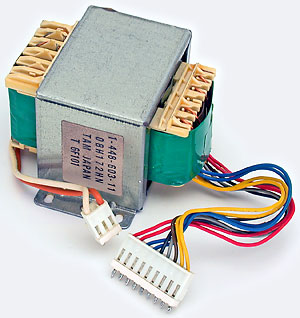

    ≈90va F 1 1-448-603-11 SONY 120 1.50kg 2¾" × 3¾" × 2⅜"h
7.5V
—
17V
—
20V
—
33V
—

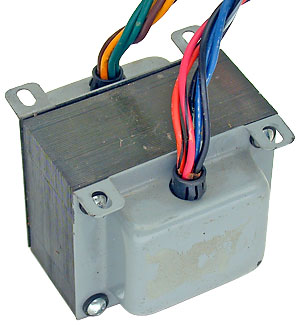

    ≈80va G 1 9100-0003   120/240 1.40kg 3" × 3" × 2½"h
7.5V
—
9V
—
15V
—
25VCT
—
27V
—

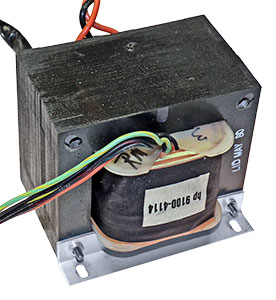

  ≈300va J 1 9100-4114 HP 120/240 Schematic
3.23kg 3¾" × 4" × 3⅛"h

18VCT
—
18VCT
—
18VCT
—
34VCT
—
34VCT
—
56VCT
—

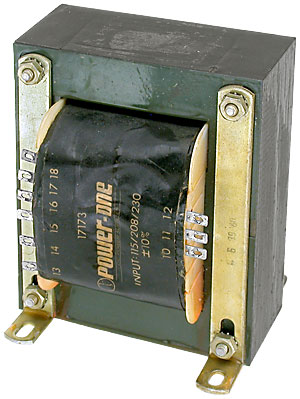

≈400va   1 17172 (S) Power-One 120/240 Schematic
5.92kg 4⅜" × 4" × 5¼"h
