Switching Power Supplies


Special Power Supplies


SpecialEnclosedOpen FrameCircuit BoardDC/DC

 High Voltage

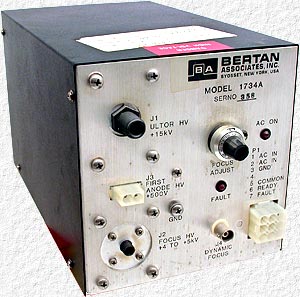

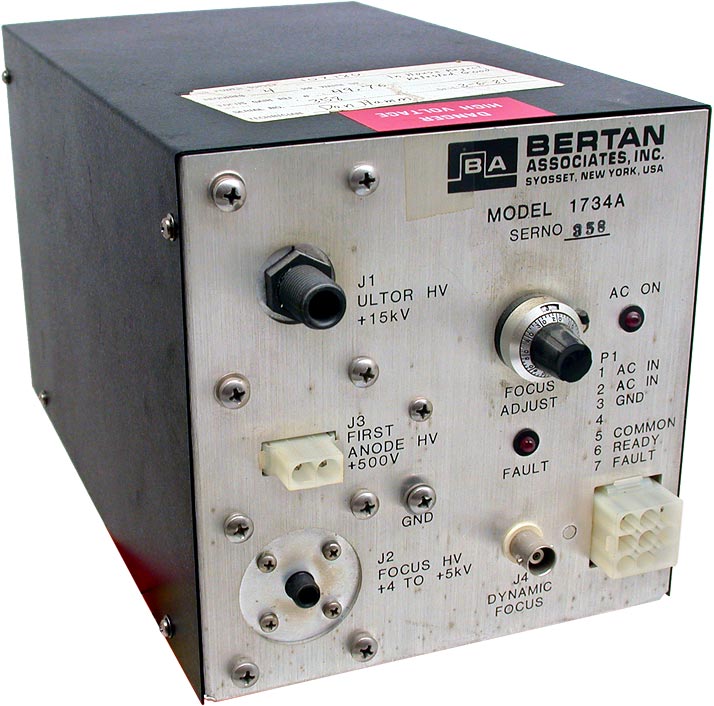

BERTAN 1734A
CRT Power Supply

Input: 120 VAC
Output:  + 15 KV DC
+ 4KV to 5KV
+ 500 VDC

6" 6" 10"

4.65kgQty: 1$20

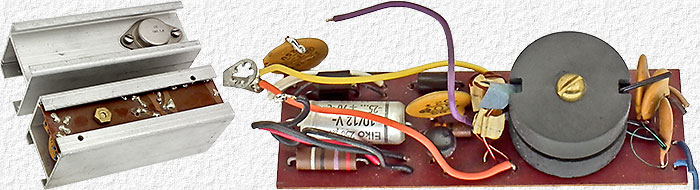

General Purpose  High Voltage  Power Supply

I have no idea what these converters acquired with no documentation were for originally, but they have come in handy for all kinds of projects over the years. Hard to say what the maximum safe input voltage may be, but work fine using from 1 to 10 volts and at 10 volts provide 1500 volts.
See the hv_module_schematic.pdf for additional information.

170gQty: 7$12 ea.2/$20All 7/$60


Enclosed Switching Supplies


SpecialEnclosedOpen FrameCircuit BoardDC/DC

Lambda
LUS 8 5

Input: 120 VAC

Output:  5V  3A

NEW

0.27kgQty: 1$25

Volgen
PSN 05005

Input: 120 VAC

Output:  5V  5A

0.36kgQty: 1$25


Astec Model AA19360
Apple P/N 614-0060

Input: 100-120 / 200-240 VAC

Output: +12V  5A / +5V  20A /
+3.3V  10A / +5V  0.10A / 12V  0.75A

8-1/4" 5" 3-1/2"

1.4kgQty: 1$25

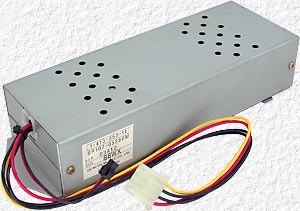

Mitsumi SR107-05280M

Input: 120/240 Volt

Output:  +5V & +12V

8" 3" 2"

0.92kgQty: 1$25

IEC320 AC Input Connector and On/Off Switch is in the end opposite to output wiring. Wiring has a standard 4 pin PC peripheral plug and a fan / indicator 2 pin plug.


Lambda EWS180-48

Input: 85/350 VAC  47-63 Hz

Output:  48VDC   3.8A

8" 3" 2"

1.1kgQty: 4$30 ea.4/$100


Open Frame Switching Supplies


SpecialEnclosedOpen FrameCircuit BoardDC/DC

Digital 30-34425-01 Power Supply

NEW  Made in Germany

Input:100/240 VAC

Output:
+  5.2 VDC  3.0 Amps
+ 12 VDC    7.0 Amps

10-1/4" x 5-1/8" x 2-3/4"
c/w 2 Molex Connector output cables.

1.1kgQty: 1$30

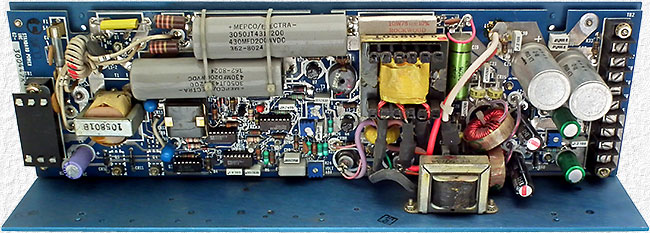

Standard Power SWS 250T

Input:115/230 VAC
47 - 440 Hz

2.0kgQty: 1$30

Output:+  5.0 VDC  25 Amps
+ 12 VDC    4.0 Amps
− 12 VDC    4.0 Amps

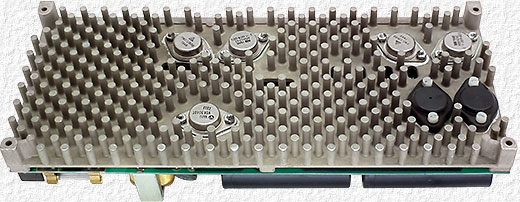

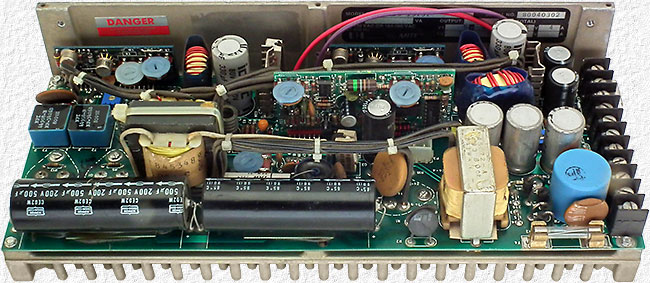

Tiny-Mite TM23-13838

Input:92 - 130V or 184 - 260V
47 - 450 Hz

1.970kgQty: 1$30

Output:+  5.0 VDC  20 Amps
+ 15 VDC    4.0 Amps
− 15 VDC    4.0 Amps


Circuit Board Switching Supplies


SpecialEnclosedOpen FrameCircuit BoardDC/DC

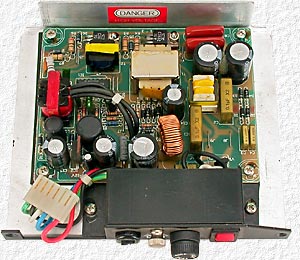

DSP-5187-001 12W Power Supply

Small frame has power switch, fuse holder and line cord strain relief.

Input:120 VAC

Output:
+   5 VDC  1.20 Amps
+ 12 VDC  0.26 Amps
− 12 VDC  0.24 Amps

0.43kgQty: 1$20

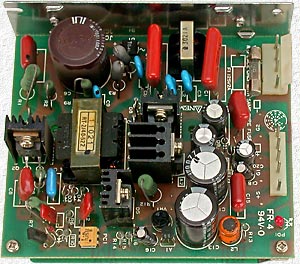

Lambda LVT-40-133-B 16W Supply

Input:85−132 VAC

Output:
+  5 VDC  2.0 Amps
+12 VDC  0.3 Amp
−12 VDC  0.2 Amp

0.28kgQty: 1$20

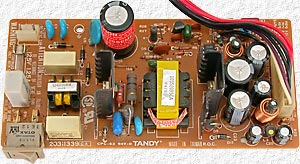

Tandy 25W Power Supply

Input:120 VAC

Output:
+   5 VDC  2.6 Amps
+ 12 VDC  1.0 Amps
− 12 VDC  0.05 Amp

0.22kgQty: 1$20

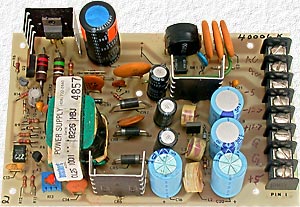

boschert OL25-1001 25W Power Supply

Input:120 VAC

Output:
+   5 VDC  ? Amps
+ 12 VDC  ? Amps

5-15/16" x 3-13/16" x 1-3/4"

0.26kgQty: 1$15


( similar to the 3 output version below )

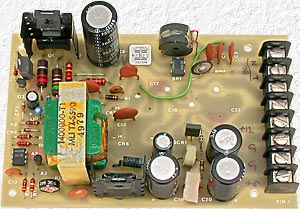

boschert OL25-1001 25W Power Supply

Input:120 VAC

Output:
+   5 VDC  ? Amps
+ 12 VDC  ? Amps
− 12 VDC  ? Amps

5-15/16" x 3-13/16" x 1-3/4"

0.28kgQty: 3$20 ea.

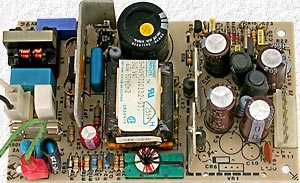

Computer Products NFS25-7629

25W Supply

Input:100−240 VAC

Output:
+   5 VDC  2.0 Amps
+ 12 VDC  1.5 Amps

5" x 3" x 1-1/4"

0.23kgQty: 1$20

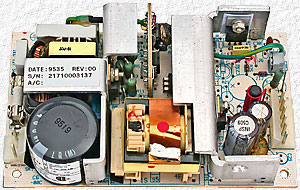

Astec LPS44 40W Power Supply

Input: 100-250 VAC
50-440 Hz

Output:  +19 VDC  2.1 Amps

5" x 3" x 1-1/8"

0.24kgQty: 1$20

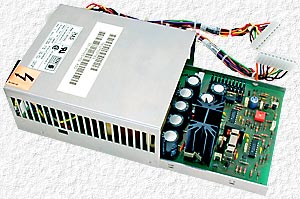

70W Power Supply
(Currently installed in the enclosure shown below..)


"Click" for enclosure listing with
an image of the supply inside.

Input:   120 VAC

Output:

+  5V  3.0  A
−12V  0.17A
+24V  2.2  A

Qty: 1$20


DC/DC Switching Supplies


SpecialEnclosedOpen FrameCircuit BoardDC/DC

Semiconductor Circuits
Power Source

SW12-5S2000

Input:12 VDC

Output: 5 VDC  2 Amps

0.10kgQty: 27$20 ea.


Hammond
HDDC 05 15 100

Input:5 VDC

Output: +/−15 VDC  0.1 Amp

0.05kgQty: 1$20 ea.


Semiconductor Circuits
Power Source

SP6159

Input:12 VDC

Output: +/−18 VDC  0.2 Amp

0.10kgQty: 23$20 ea.



( Similar Image )

Computer Products
NFC15-4755

1-5/8" x 2" x 7/16" thick.
With on/off control pin.

Input:48 VDC

Output: 5 VDC     ? Amp

0.0kgQty: 2$30 for both.
