2-Way Radio, Repeater & Misc. Other Radio Items
See the Crystals Page for Crystals, Crystal Filters and Channel Elements

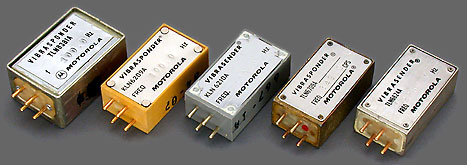

Motorola Tone Oscillator Elements
|
|||||
 |
|||||
| Radio | Model | Part # | Qty | Freq (Hz) | Notes |
| Vibrasponder | TLN6709A | 1 |
349.0 |
used in Pageboy pagers | |
| 1 |
368.5 |
||||
| MSR2000 | Vibrasponder | KLN6209A | 2 |
136.5 |
from MSR2000 TRN5073A PL Module |
| Vibrasender | TLN6824A | 1 |
2250.0 |
||
| 1 |
2325.0 |
||||

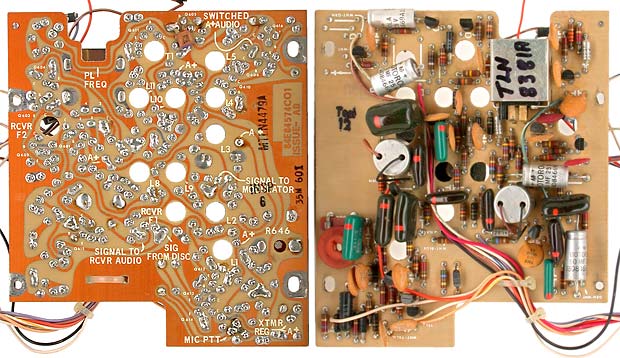

| Micor | Vibrasponder | TLN8381A | 1 |
127.3 |
from Micor TRN6002A PL Decoder |
| 1 |
156.7 |
||||
| ??? | Permacode | NLN7834A | 1 |
496.8 |
Motorola Permacode Active Filter |
| ??? | muRata EFM-G type filter | 2 |
703.3 |
These filters are also listed on the Crystals Page |
|
| 1 |
707.3 |
||||
| 1 |
1357.0 |
||||
A number of KXN1086A, KXN1086B & KXN1088A Mitrek / MSR2000 VHF/UHF Rx & Tx Channel Elements
are also available for $5 each plus
1 Set of K1017A & K1057A Mocom 30 VHF Rx & Tx Channel Elements,
1 Set of K1048A & K1049A Mocom 35 VHF Rx & Tx Channel Elements,
and a few
KXN1018A & KXN1002A Mocom 70 UHF Rx & Tx Channel Elements are listed on the Crystals Page.
Motorola MSR2000 Repeater Modules
Only a few modules are left and they can all be had for $60 (only $7.50/module).
MSR2000 Repeater Modules |
Qty |
Part # |
Cost |
| Four Frequency Control Module | 1 | TRN5296A | $10 - $30 each |
| Time Out Timer | 4 | TRN5295A | |
| C2-R2 Control Module | 1 | TRN5255A | |
| F2 Control Module | 1 | TRN5325A | |
| Paging DC Transfer | 1 | TRN5239APR |
Micor Repeater Modules |
Qty |
Part # |
Cost |
| Alarm Module | 1 | ORN8208A | $10 - $30 ea. |
| Emergency Power Control Module | 2 | TLN4970A | |
| F1 - "PL" Control Module | 2 | TLN4638A | |
| 1 | TLN4638A2 | ||
| 1 | TLN5294A | ||
| Four User Control Module | 10 | TLN5804A | |
| 2 | TLN1177A | ||
| 4 | TLN8781A | ||
| Guard Tone Decoder | 2 | TLN4852A | |
| Repeater Control Module | 1 | TLN4050A | |
| Single Tone Decoder | 2 | TLN8773A | |
| Time Out Timer | 2 | TRN8684B | |
| Voting Encoder | 1 | TLN4915A | |
| 2 | TLN4964A | ||
| Wildcard Control Module | 1 | TLN4054A | |
| Power Control Card ( from a Micor Repeater Chassis ) | 1 | TLD8620A2 | $5 |
| Very little Micor stuff is left and anyone helping me clean up by taking everything above plus a few other misc. repeater chassis items can have it all for $40 ( or ≈ $1 each ) |
|||

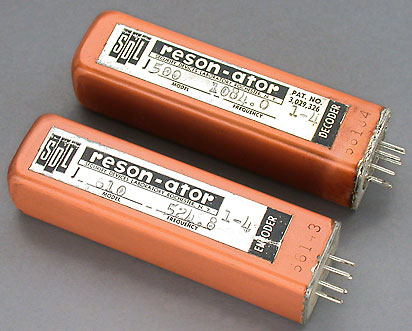

SDL (Security Devices Laboratory) ResonatorsI have no idea what radio(s) these were used in. |
||||
 |
Type | Model | Freq | Qty |
| Encoder | 610 | 384.6 | 2 | |
| 473.2 | 1 | |||
| 524.8 | 1 | |||
| 794.3 | 1 | |||
| 977.2 | 1 | |||
| 1084.0 | 1 | |||
| Decoder | 510 | 473.2 | 1 | |
| 524.8 | 1 | |||
| 794.3 | 1 | |||
| 977.2 | 1 | |||
| 1084.0 | 1 | |||
 |
Seal up something that's never intended to be opened and you'll always find someone that just has to see what's hidden inside and will tear it apart. I'm not like that, although I did open up one of the units to simply save others the trouble of course. |
|||
| A simple, but very reliable device. A resonant reed with a coil to excite it and an adjustment screw in the top which was likely for precise factory adjustment of the frequency but could also lead to these units being useful for some unique applications. |
||||
 |

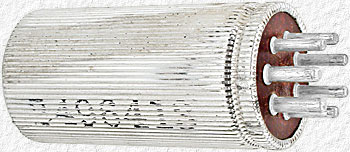

Vibrator
|
 |

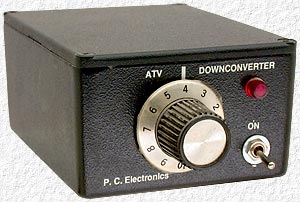

P.C.Electronics
|
 |

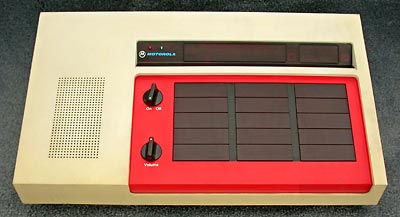

Motorola
|
 |

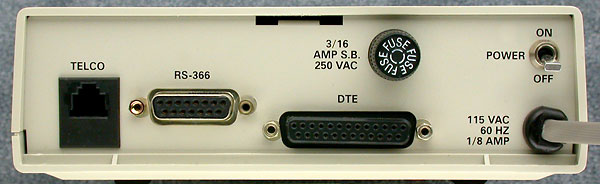

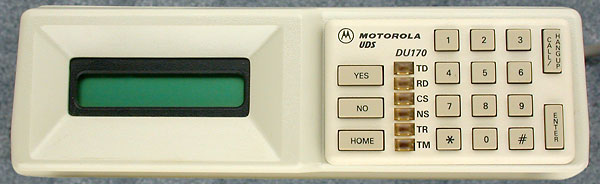

MOTOROLA DU170
|
 |
|
 |
|

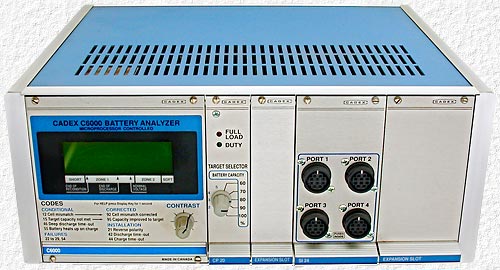

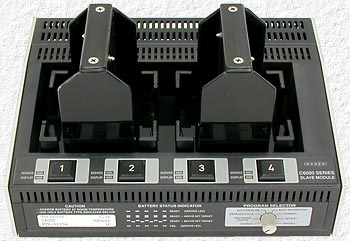

Cadex C6000 Battery Analyzer - Model C6032
|
|
| One Model SM64-487 Slave Module for Bacharach Sniffer 302 - 5V 2000 ma batteries. |
|
