Control Knobs & Vernier Dials

Unless noted otherwise; knobs are black, set screw attachment type
for 1/4" dia. round control shafts.

Vernier Dials

Be aware that most knobs are not new and many are vintage and may be up to 50 years old,
but all are in, at least, GOOD condition. Sizes were measured to the nearest 1/16", however some were
exactly 1/2 way between 16ths so hard to know, for example, if size should be recorded as 11/16" or 3/4".

Missing prices, details and other information often only gets added as enquiries are received, so
Email if additional information is required and I'll add it and get back to you as soon as possible.

Prices are not firm and less is often charged depending on the item and size of the order.
Enquire with a photo if something hard to find is needed as a few other HP & Tek knobs on
old equipment are also available. And if ordering and you have any spare Tektronix knobs
to trade, let me know as I need some that I don't have for some restored equipment I use.

Pointer Knobs
From
L to R:		 #P1 Black 1-1/2"L x 7/8"D x 5/8"H Qty: 3

$1
ea.
#P2 Black 1-1/4"L x 3/4"D x 5/8"H Qty: 3
#P3 Maroon 1-1/4"L x 3/4"D x 5/8"H Qty: 1
#P4 Red 1-1/4"L x 3/4"D x 5/8"H Qty: 2
#P5 Cream 1-1/4"L x 3/4"D x 5/8"H Qty: 2
#P6 Black 1-1/4"L x 11/16"D x 5/8"H Qty: 3
#P7 White 1-1/4"L x 11/16"D x 5/8"H Qty: 1
#P8 Black 1-1/4"L x 3/4"D x 5/8"H – DAKA-WARE Qty: 3
#P9 Black 1-1/4"L x 3/4"D x 5/8"H – DAKA-WARE Qty: 4
1-1/4"L x 3/4"D x 5/8"H – for 1/4" 'D' shaped shafts Qty: 1



#1

9/16" dia. x 7/16" tall

Qty: 13$2 ea.

 #2

11/16" dia. x 3/8"

Qty: 2$1 ea.
#3

11/16" dia. x 3/8"
– for 1/8" shaft

Qty: 1$1

 #4

11/16" dia. x 3/8"
– for 1/8" shaft

Qty: 1$1
#5

11/16" dia. x 7/16"

Qty: 1$1

 #6

11/16" dia. x 7/16"

Qty: 3$1 ea.
#7

5/8" dia. x 1/2"

Qty: 3

 #8

3/4" dia. x 7/8"

Qty: 7

#7 + #8 – Solid Brushed Aluminum Knobs – 10/$10
#9

Motorola Knob

15/16" dia. x 5/8"

Qty: 1$1

 #10

Motorola Knob

3/4" dia. x 3/4"

Qty: 5$1 ea.
#11

Likely a Motorola Knob

3/4" dia. x 3/4" tall

Qty 4 – for 1/8" shafts
Qty 9 – for 1/4" shafts

$2 ea.

 #12

Likely a Motorola Knob

Qty 7 – 11/16" dia. x 3/4"
Qty 2 –     3/4" dia. x 5/8"

$2 ea.
#13

Likely a Motorola Knob

Qty 2 – 3/4" dia. x 1/2" tall
Qty 4 – 3/4" dia. x 7/8" tall

$2 ea.

 #14

11/16" dia. x 13/16" tall

Qty: 2$2 ea.
#15

Side groves match style on
Raytheon knobs.

3/4" dia. x 5/8" for 1/8" shafts

Red – silver painted center

Qty: 3$1 ea.

 #16

Side groves match style on
Raytheon knobs

3/4" dia. x 5/8" for 1/8" shafts

Red

Qty: 7$1 ea.
#17

Side groves are very similar to
style on Raytheon knobs.

Grey in color
3/4" dia. x 3/4"

Qty: 33/$3

 #18

Black portion is identical to
Raytheon knob style.

3/4" dia. x 9/16"
w/ brushed metal top

Qty: 1$1
#19

3/4" dia. x 3/4" tall

Qty: 33/$3

 #20

3/4" dia. x 5/8" tall

Qty: 44/$4
#21

3/4" dia. x 5/8" tall

Qty: 23$1 ea.

 #22

3/4" dia. x 1/2" tall

Qty: 5$1 ea.
#23

7/8" dia. x 5/8" tall

Qty: 5$1 ea.

 #24

Vintage Control Knobs

  Qty 6 –  13/16" dia. x 9/16"
Qty 1 – 1-1/16" dia. x 5/8"

7/$5
#25

1" dia. x 1/2" tall

Qty: 44/$4

 #26

7/8" dia. x 15/16"

Qty: 33/$2
#27

1" dia. x 7/8" tall

Qty: 33/$5

 #28

1" dia. x 3/4" tall

Qty 13 – as shown
Qty 1 – w/ silver center

14/$10
#29

1-1/16" dia. x 5/8" tall

Qty: 9$2 ea.

 #30

1-1/16" dia. x 1/2"

Qty: 88/$10
#31

1-1/8" dia. x 5/8" tall

Qty: 33/$2

 #32

1-1/8" dia. x 7/8" tall

Green Color

Qty: 1$1
#33

Qty 11 – 1-1/4"  dia. x 11/16" – for 1/4" shafts
Qty 2   – 15/16" dia. x 11/16" – for 1/8" shafts

Very nice control knobs with a hidden mounting screw under
the 'Press-On' top that adjusts grip to secure the knob in place.

#31 – All 13 Knobs – $30
#34

1-1/4" dia. x 5/8" tall

Qty: 33/$3

 #35

1-1/2" dia. x 7/8" tall

Qty: 44/$4
#36

Bogen PA Amplifier Knobs

1-7/16" dia. x 7/8"

Press-On Type for
1/4" 'D' shaped shafts

Qty: 66/$10 SOLD

#37

1-1/8" dia. x 5/8"

Qty: 3$2 ea.

#38#39#40
#38 Qty 5 – 1-1/2" dia. x 3/4"$3 ea.
Qty 1 – 1-5/16" dia. x 11/16"$3
Qty 5 – 3/4" dia. x 7/16"$2 ea.
Qty 1 – 3/4" dia. x 7/16" – for 1/8" dia. shaft  $2
#39 Qty 2 – 1-1/2" dia. x 3/4"$3 ea.
Qty 1 – 13/16" dia. x 5/8" – for 3/16" dia. shaft  $2
#40 Qty 2 – 1-1/4" dia. x 11/16"$3 ea.
Qty 1 – 15/16" dia. x 5/8"$2
or save $11 and get all 18 knobs for $35

2.1" dia. Tuning Knobs

Handle is 11/32" dia. x 9/16" long.
Wheel is  2-3/32" dia. x 1/2" with a
7/8" dia. x 5/16" set screw portion.

#41Qty: 3$5 ea.
#42

Like New
Silver Metallized Plastic
Press-On Type Knobs
for 1/4" splined shafts
3/4" dia. x 11/16"
w/ 3/16" recessed interior
for control mounting nut & washer

Qty: 1010/$10

 #43

Brushed Aluminum
Outer Control Knob

3/4" dia. x 1/4" thick

Qty: 172/$1

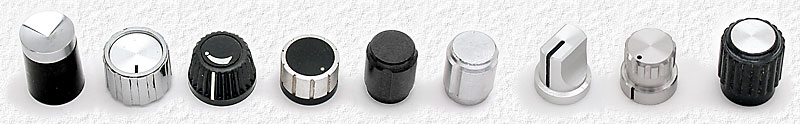

x3x1x1x1x2x2x10x4x1

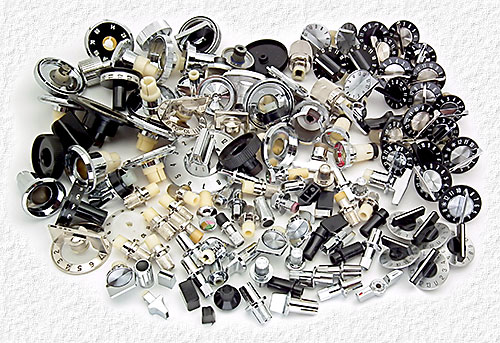

Some of the other misc. knobs available for 1/4", 3/32" & 1/8" shafts. Email for further info if interested.



Matching Control Knobs
#C1 1-1/2" dia. x 11/16" – w/ indicator marks Qty 2 $3
ea.
#C2 1-1/16" dia. x 5/8" – w/ indicator line Qty 1
#C3 1" dia. x 5/8" – w/ no indicator marking Qty 4 $2.50
ea.
#C4 1" dia. x 5/8" – w/ indicator mark Qty 1
#C5 1" dia. x 9/16" – w/ indicator dots Qty 1
#C6 7/8" dia. x 9/16" – w/ indicator line Qty 1 $2
ea.
#C7 3/4" dia. x 1/2" – w/ indicator line Qty 1
#C8 3/4" dia. x 1/2" – w/ indicator line – for 1/8" shafts Qty 1
#C9 3/4" dia. x 1/2" – w/ indicator line – for 1/8" shafts Qty 1
#C10

 Red    Inner Knob – 3/4" dia. x 1/2" – for 3/16" shaft

 Black Outer Knob – 1" dia. x 5/8"

 Qty -
2 pr.		 $6/pr.
#C10A  1 of above pair w/ a Centralab Dual 25K Ω Potentiometer Qty 1 $10
#C10B

 1 of above pair w/ a Centralab, 1K Ω Outer, 100 Ω Inner,
     Dual Potentiometer

 Qty 1 $10



HP (Hewlett-Packard) Classic Control Knobs
#HP1 1-3/8" dia. x 1-5/8" wide x 3/4" tall Qty: 3 $3
ea.
#HP2 1-1/16" dia. x 1-1/4" wide x 11/16" tall Qty: 6
#HP3    1" dia. x 11/16" tall Qty: 1 $2
ea.
#HP4 3/4" dia. x 11/16" tall Qty: 1
#HP5

 For dual control shafts –

 Inner Knob – 3/4" dia. x   9/16" tall – for 3/16" shaft

Outer Knob –   1" dia. x 11/16"

 Qty:
1 Pair		 $5
/pr
#HP6

 For dual control shafts –

 Inner Knob – 5/8" dia. x 5/8" tall – for 1/8" shaft

Outer Knob – 1" dia. x 1-1/4" wide x 11/16" tall

 Qty:
2 Pair



Tektronix Older Classic Style Control Knobs
#T1 1-3/8" dia. x 11/16" Qty: 3 $2-$3
ea.
#T2 1-3/8" dia. x 11/16"
– w/ thru-hole for a 1/8" dia. center shaft.		 Qty: 1
#T3 1-3/8" dia. x 11/16" Qty: 2
#T4 1-1/4" dia. x  9/16" Qty: 1
#T5 1-3/8" dia. x 11/16"
– w/ thru-hole for a 1/4" dia. center shaft.		 Qty: 10
#T6 1-3/8" dia. x 11/16" – w/ 7/16" long Pointer Qty: 1
#T7 3/4" dia. x 9/16" Qty: 9 $2-$3
ea.
#T8 11/16" dia. x 9/16" Qty: 2
#T9 13/16" dia. x 5/8" Qty: 1
#T10     3/4" dia. x 7/16" – for  1/8"  dia. shafts Qty: 7
#T11     3/4" dia. x 7/16" – for 3/16" dia. shafts Qty: 4
#T12 11/16" dia. x 3/8"   – for 3/16" dia. shafts Qty: 1
#T13 1-3/16" dia. x 5/8" – w/ metal center insert Qty: 2
#T14

1"  dia. x 1-3/8" wide x 3/4" tall

Similar to photo (left) w/ thru-hole for a 1/8" dia. center shaft and use with a 3/4" dia. center knob.

 Qty: 1
#T15 7/8" dia. x 1-1/4" wide x 5/8" tall Qty: 1
#T16 3/4" dia. x 1" wide x 9/16" tall Qty: 1
#T17 9/16" dia. x 1/2" – for 1/8" shafts Qty: 2



Raytheon Control Knobs
#R1 p/n MS91528-3F2B 1-13/16" dia. x 7/8" Qty 1 $1-$3
ea.
#R2 p/n MS91528-2F2B 1-1/2" dia. x 1" Qty 1
#R3 p/n MS91528-1F2B 1-1/8" dia. x 13/16" Qty14
#R4 p/n MS91528-2C2B 15/16" dia. x 13/16" Qty 2
#R5 p/n MS91528-???? 3/4" dia. x 13/16" Qty 1
#R6 p/n MS91528-1D2B 3/4" dia. x 13/16" Qty 1
#R7 p/n MS91528-1N2B 3/4" dia. x 5/8" Qty 4
#R8 p/n MS91528-???? 3/4" dia. x 5/8" – for 1/8" dia. shafts Qty 4
#R9 p/n MS91528-???? 1/2" dia. x 1/2" – for 1/8" dia. shafts Qty 10
#R10 p/n MS91528-1K2B 11/16" dia. x 1" long x 13/16" tall Qty 11

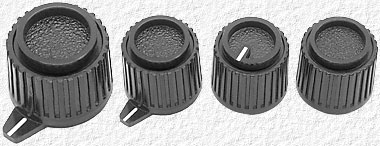

Left to Right
Qty 6 –  1" dia. x 1-3/16" x 3/4" tall
Qty 1 – 3/4" dia. x 15/16" x 3/4" tall
Qty 3 – 3/4" dia. x 3/4" tall
Qty 4 – 3/4" dia. x 3/4" tall

#S1 – Set of 14 Knobs – $20

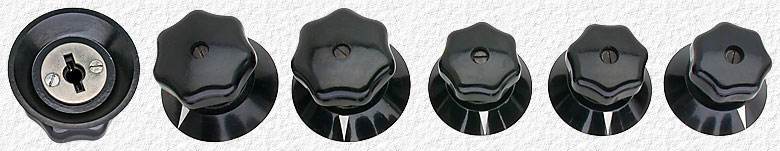

Vintage Control Knobs from Equipment Manufactured in Germany
For 1/4" shafts with internal threads for the knob mounting screw and a 3/32" dia. x 7/16" pin through the shaft that fits into a slot in the knobs and keeps them from rotating on a shaft.

2 knobs – 1-7/8" dia. x 1-3/8" tall
4 knobs – 1-5/8" dia. x 1-1/4" tall

#S3 – Set of 6 Knobs – $6

Vernier Dials

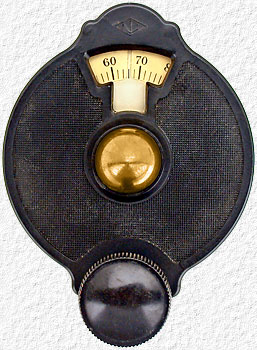

Vintage Vernier Dial
2-7/8" wide x 3-7/8" high
8 to 1 Ratio  –  0-100 Calibration

Qty 1$15



HP (Hewlett-Packard) Vernier Dial
from a HP-236A Audio Oscillator

Qty 2$20 ea.

This page was last updated: October 20, 2008
