Connectors, Terminal Blocks & Strips


Terminal Strips

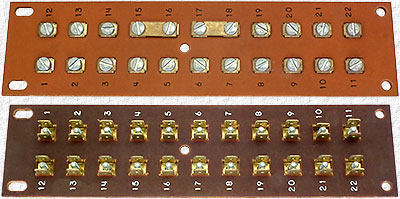

22 Position Screw Terminal Connector Board
with 2 spade lug terminals on back side of
each terminal.  2" wide x 8" high

12=990gQty: 12$1 ea. or all 12/$10


Barrier Terminal Blocks / Strips


Below are some of the terminal block types available, however some images may be lacking details of what I have available and I often don't get around to adding that and other information until receiving an enquiry so Email if interested in any like that and I'll get the information added and back to you asap.

Cinch Jones Barrier Terminal Blocks

Details of the different series can be found on the Cinch Web Site & in this Cinch Barrier Block PDF




Series 140





Series 140-Y







*** the different style of 140-Y terminal mentioned.

Series 140

(.375 terminal spacing, 5-40 BH Screw, Open Bottom, Double Row)

Cat. # Qty Ea.   Cat. # Qty Ea.
2-140 6     2-140-Y 2
3-140 5     3-140-Y 1
4-140 11     4-140-Y 6
5-140 2     5-140-Y 1
6-140 4
8-140 4     8-140-Y 4
9-140 1
10-140 8     10-140-Y 3
12-140 5     12-140-Y 2
16-140 3
17-140 1
        18-140-Y 2
21-140 1





Qty



Plus

10 like Cinch 2-140 except different manufacturer, grey in color
      and with 6-32 BH screws and a closed bottom.
  1 like Cinch 4-140 except different manufacturer
      and with 6-32 BH screws and a closed bottom.
  1 like Cinch 4-140 except made by Kulka, tan in color
      and with 6-32 BH screws.
  1 like Cinch 7-140 except different manufacturer
      and with 6-32 BH screws and a closed bottom.
  2 like a 10-140-Y but with a ***different style of wiring terminal
  3 like a 25-140-Y but with a ***different style of wiring terminal


Also

74  Y-140 Terminals
  42 W-140 Terminals
  26 Type A Jumpers, #140J-1


and

 Marker Strips

Qty


  3 MS-4-140 7 MS-10-140
  3 MS-4-140-Y 4 MS-12-140
  1 MS-6-140 2 MS-12-140-Y
  1 MS-8-140 2 MS-16-140
  4 MS-8-140-Y 1 MS-17-140



(Reserved for Image)

Series 540 (Discontinued)

.375 terminal spacing, 5-40 BH Screws, Closed Bottom, Double Row

  Qty 1 - Cat. #: 20-540


Series 141




Series 141-Y

Series 141

(.438 terminal spacing, 6-32 BH Screws, Open Bottom, Double Row)

Cat. # Qty Ea.   Cat. # Qty Ea.
2-141 8     2-141-Y 1
3-141 4
4-141 1  + 2 more similar ones listed below
5-141 1
6-141 4  + 2 more similar ones listed below
8-141 1     8-141-Y 4
10-141 1
15-141 2
20-141 3





Qty



Plus

2 4 position like Cinch 4-141 except different manufacturer
      and a closed bottom.
  2 6 position like Cinch 6-141 except different manufacturer,
      screws w/ wire clamp plates and a closed bottom.
  1 10 position like Cinch 10-141 except different manufacturer,
      blue color and 10 individual terminal sections on a rail
      that could also be used for several shorter terminal
      blocks with no more than 10 terminals in total.


Also

15 3/4W-141 terminals
  9  Y-141 terminals
  19 Type A Jumpers


and

2 MS-8-141

Marker Strips

  3 MS-8-141-Y Marker Strips
  2 MS-20-141 Marker Strips



(Reserved for Image)

Series 541 (Discontinued)

 .438 terminal spacing, 6-32 BH Screws, Closed Bottom, Double Row

  Qty 1 - Cat. #: 5-541 with QC-1 Quick Clamp Terminals


Series 142

Series 142

(.563 terminal spacing, 8-32 BH Screws, Open Bottom, Double Row)

Cat. # Qty   Ea.
3-142 1 w/ a MS-3-142 Marker Strip
4-142 2 w/ a MS-4-142 Marker Strip
16-142 1


Also:

1 MS-5-142 Marker Strip
  1 MS-8-142 Marker Strip



(Reserved for Image)

Series 542 (Discontinued)

 .563 terminal spacing, 8-32 BH Screws, Closed Bottom, Double Row

  Qty 1 - Cat. # 6-542 with "Y" Style Solder Terminals
  Qty 1 - 2 position like a 2-542, but by BEAU



(Reserved for Image)

BEAU 2800 Series

 .7" terminal spacing, 10-32 BH Screws, Open Bottom, Double Row

  Qty 3 - 4 position



(Reserved for Image)

KULKA

 .563 terminal spacing, 10-32 BH Screws, Closed Bottom, Double Row

  Qty   1 -   8 position w/ a number** of jumpers.
  Qty   3 - 12 position w/ a number** of jumpers.

**There's 21 Cinch Type A Jumpers in total on the 4 terminals.



(Reserved for Image)

SATO ML-20

 .438" terminal spacing, M4-0.7 screws w/ wire clamp plates,
Closed Bottom, Double Row. Rated 20A 250V

  Qty 2 - 4 position


RDI Barrier Terminal Blocks

RDI / Reed Devices Inc. became Tyco Electronics and is now TE Connectivity

4 PVC Series

.325" terminal spacing, 6-32 screws w/ wire clamp plates and PC pins.

Cat. # Qty Ea.
4PVC-08 1



6 PVC Series NEW / UnUsed

.375" terminal spacing, 6-32 screws w/ wire clamp plates and PC pins.

Cat. # Qty Ea.
6PVC-02 10
6PVC-03 1
6PVC-06 1



8 PVC Series NEW / UnUsed

.4375" terminal spacing, 8-32 screws w/ wire clamp plates and PC pins.

Cat. # Qty Ea.
8PVC-02 9
8PVC-03 5
8PVC-05 8



(Reserved for Photo)

JB7 Series NEW / UnUsed Individual Interlocking Terminals

.412" terminal spacing, 6-32 BH screws and PC pins.

Qty   Ea.
4   6 position terminal blocks.
6

12 position terminal blocks



NOTE: Each terminal block is made up of a number of individual interlocking terminals plus 1 end piece to close off the open end and additional
end pieces will be needed if one wants to use the individual sections
for making more than 1 smaller sized block.

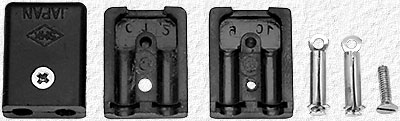

2 Pin Plugs & Sockets

PlugQty: 44/$4

Pin dia. = 2.3mm (≈.090"), spacing = 7.3 mm (.288"), length 10mm (.394")
(This Plug & Socket Style A are the same as ARMACO item #TFRP)

(Pin dia. & spacing is the same as LEGO plugs.)

Socket Style A

Marked EDK JAPAN
w/ metal mounting plate &
 mounting hole spacing of
20mm (≈.79")

 NEW Qty: 100
10/$350/$15100/$20

Socket Style B

Marked EDK JAPAN
All thermoplastic with
mounting hole spacing of
20mm (≈.79")

 NEW Qty: 118
10/$350/$15118/$20
 SOLD

Socket Style C

70 pair of connector shells marked SMK JAPAN, but there's only 1 set of pins and ≈ 20 7mm long M2 x 0.4 screws. A good deal if someone knows where to get more pins.        NEW Qty: 7070/$10


Belling-Lee L1390/S 3 Pin Sockets

(3) 1/8" (.125") dia. pins spaced 5/8" (.625")
( which makes spacing of 2 outside pins = 1-1/4" )

 NEW Qty: 1111/$2

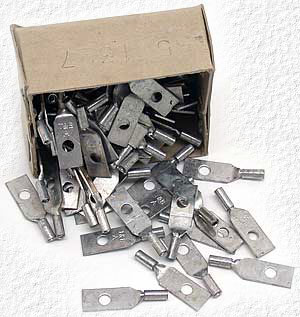

T&B Crimp Terminals

100 terminals per box

For up to #18 AWG wire and #6 screws.
Flat portion is 5/16" wide x 5/8" long.
Overall length is 1.1"

Qty: 20 Boxes$2 per box


Switchcraft 1/4" Phone Plugs   NEW

#280 – 1 Cct.  Qty: 10$4 ea.

#297 – 2 Cct.  Qty:   6 $6 ea.


SwitchCraft 1/4" Phone Jacks$1 ea.

#11   mono - Qty: 7

#12A mono with tip shunt - Qty: 1

#12B stereo - Qty: 7
#12B stereo with isolated mounting - Qty: 11
#12B stereo smaller d iameter (guessing metric) - Qty: 4

#13B stereo with tip shunt - Qty: 16


SwitchCraft 1/4" Phone Jacks -  NEW  - $1 ea.

SwitchCraft #N113B - (Left)
Stereo Jack with Tip NC Shunt Switch
Qty: 8+
SwitchCraft #RN114BPC (Right)
Stereo Jack with Tip & Ring NC Shunt Switches
Qty: 18

POSITRONIC IND INC
34 circuit connectors
#VMCT34F0T0000-503.0

 NEW 10 Sockets + 29 Plugs — $50


VERO EUROCARD
64 Circuit Ribbon Cable Socket
#83-2006B c/w strain relief

 NEW Qty: 25$5 ea.


(Reserved for Photo) 1 roll of 64 Conductor Ribbon Cable for connector above.
E-mail for further details.

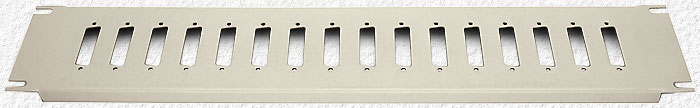

19" Rack Mount Steel Panel with 16 DB25 Connector CutoutsQty: 1$10
or the panel with 16 DB25 connectors (male or female) for $20
(Reserved for Photo) or just DB25 connectors (male or female) for $1 ea. or 12/$10

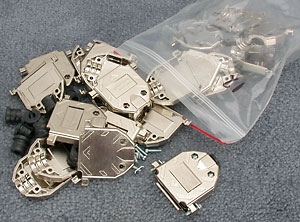

DB25 BACK SHELL

Metallised Plastic c/w hardware

Like New Condition

Qty: 126/$612/$10

0.12kg/6

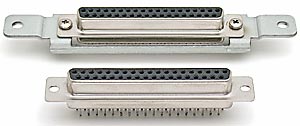

DB37 Connector JAE # DC-37SFT-N

PC thru board mtg. Complete with mounting plate.
These came from New Equipment and Good As New
with no wear from repeated connections.

Qty: 20$1 ea.20/$15


Card Edge Connectors
.156" Contact Spacing x .2" Row Spacing

86 Contact
Dual Row

EDAC 307-086-500-204

Qty: 4$4 ea.4/$15

 NEW Connectors
Solder Eyelet Termination

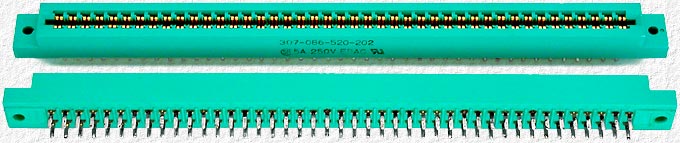

EDAC 307-086-520-202

Qty: 4$3 ea.4/$10

Solder Tail Termination

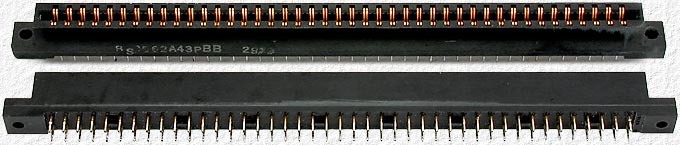

BS1562A43PBB

Qty: 8$3 ea.8/$20

Round Solder Tail Termination

72 Contact - Dual Row

Amphenol 225-23621-101

Qty: 1$3

Solder Eyelet Termination

36 Contact - Single Row

Amphenol 143-036-01

Qty: 1$3

Solder Eyelet Termination

Amphenol 143-036-03

Qty: 9$3 ea.9/$20

Wire Wrap Termination

56 Contact - Dual Row

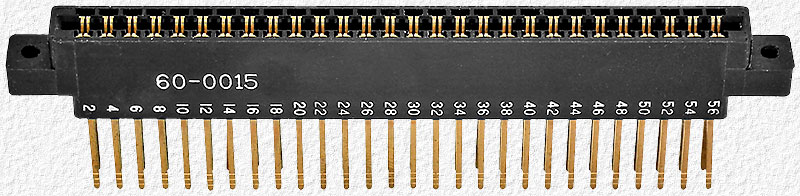

EBY 60-0015

Qty: 4$4 ea.

Gold Platted Contacts &
Wire Wrap Pins

# ???

Qty: 11$3 ea.11/$25

Phosphor-Bronze Contacts
& Wire Wrap Pins
28 Contact - Single Row

60-0015

Qty: 1$3

Solder Tail Termination

50 Contact - Dual Row

315-050-500-202

Qty: 1$3

Solder Eyelet Termination

44 Contact - Dual Row

Compar ESM 22 DREH

Qty: 4$4 ea.

 NEW Connectors
Solder Eyelet Termination

S.A.E. Inc.

Qty: 2$4 ea.

 NEW Connectors
Solder Eyelet Termination

??? 8B44

Qty: 1$4 ea.

 NEW Connector
?? Termination

36 Contact - Dual Row

Cinch 251-18-30-160

Qty: 5$3 ea.5/$12

 1 NEW - 4 Like New
Solder Eyelet Termination

18 Contact - Single Row

Amphenol 143-018-01

Qty: 1$3 ea.

Solder Eyelet Termination
30 Contact - Dual Row

Cinch 251-15-30-160

Qty: 13$3 ea.8/$20

Solder Eyelet Termination

Several Manufactures

Qty: 5$3 ea.

 NEW Connectors
Solder Tail Termination

Cinch

Qty: 19$3 ea.8/$20

Solder Tail Termination

26 Contact - Dual Row

Cinch

Qty: 1$2 ea.

Solder Eyelet Termination

14 Contact - Single Row

CR4E-14S-4DSC

Qty: 2$2 ea.

Solder Tail Termination

24 Contact - Dual Row

Cinch 252-12-30-160

Qty: 1$2 ea.

Solder Tail Termination

Winchester Electric 8BD12S

Qty: 2$2 ea.

Unusual Termination
but easy to solder to.
12 Contact - Single Row

CR6-12S-3.96DS

Qty: 28$2 ea.6/$1028/$40

Solder Tail Termination


20 Contact - Dual Row

Cinch 251-10-30-160

Qty: 10$2 ea.6/$10

Solder Eyelet Termination

Various Manufactures

Qty: 2$2 ea.

Solder Tail Termination

10 Contact - Single Row

Various Manufactures

Qty: 2$2 ea.

Solder Eyelet Termination

12 Contact - Dual Row

EDAC 307-012-500-202

Qty: 7$2 ea.6/$10

Solder Eyelet Termination

307-012-520-202

Qty: 2$2 ea.

Solder Tail Termination

6 Contact - Single Row

Cinch 250-06-30-170

Qty: 2$2 ea.

 NEW Connector
Solder Eyelet Termination


The following section is

( Photo's will be added as enquires are received. )

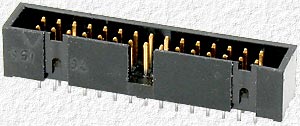

Circuit Board Headers/ Ribbon Cable Connectors
with .1" Header Pin & .05" Ribbon Cable Conductor Spacing
There are too many connectors to take an image of each one so many images are simply of a similar connector.

10
C
O
N
T
A
C
T
Reserved for Photo
10 Contact Ribbon Cable Plug

Qty: 1 - Burnby

10 Contact Rt. Ang. Header

Qty: 1 -  3M  #3491

Reserved for Photo

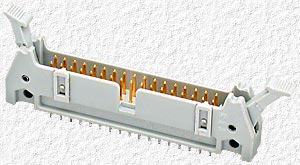

10 Contact Rt. Ang. Latch/Eject Header

Qty: 1 - Berg with Ejector Latches

14
Reserved for Photo
14 Contact Ribbon Cable Header
w/ Mounting Tabs

Qty: 1 -  NEW   AMP

16

C
O
N
T
A
C
T
16 Contact Ribbon Cable Plug

Qty: 8 -  NEW   Ansley w/ Cable Strain Relief
Qty: 1 -  NEW   AMP w/ Cable Strain Relief

16 Contact Straight Header

Qty: 2 -  NEW   Ansley

16 Contact Rt. Ang. Header

Qty: 3 -  NEW   Ansley
Qty: 1 - Misc.

Reserved for Photo
16 Contact Ribbon Cable Header
w/ Mounting Tabs

Qty: 3 -  NEW   Ansley

Reserved for Photo
16 Contact Straight Latch/Eject Header

Qty: 1 -  AMP with Ejector Latches
Qty: 4 -  AMP w/o Ejector Latches
Qty: 5 -  Ansley w/o Ejector Latches
Qty: 4 -  3M  #3408 w/o Ejector Latches

Reserved for Photo
16 Contact Rt. Ang. Latch/Eject Header

Qty: 8 -  Ansley w/o Ejector Latches

20

C
O
N
T
A
C
T
20 Contact Ribbon Cable Plug

Qty: 11 -  NEW   Ansley w/ Cable Strain Relief
Qty: 1 -  Berg w/ Cable Strain Relief
Qty: 1 -  3M w/ Cable Strain Relief

20 Contact Straight Header

Qty: 3 -  NEW   Ansley
Qty: 1 -   Used  Ansley

20 Contact Rt. Ang. Header

Qty: 1 -  Misc
Qty: 13 -  NEW   Ansley

Reserved for Photo
26 Contact Ribbon Cable Header
w/ Mounting Tabs

Qty: 3 -  NEW   Ansley

Reserved for Photo
20 Contact Straight Latch/Eject Header

Qty: 14 -  Ansley w/o Ejector Latches

Reserved for Photo
20 Contact Rt. Ang. Latch/Eject Header

Qty: 3 -  Misc. w/o Ejector Latches
Qty: 4 -  Ansley w/o Ejector Latches
Qty: 11 -  Alpha w/o Ejector Latches

26

C
O
N
T
A
C
T
26 Contact Ribbon Cable Plug

Qty: 1 -  NEW   Ansley w/ Cable Strain Relief
Qty: 2 -  NEW   3M w/ Cable Strain Relief
Qty: 3 -  NEW   Misc. w/ Cable Strain Relief
Qty: 1 -  NEW   3M w/o Cable Strain Relief
Qty: 2 -  NEW   Berg w/o Cable Strain Relief
Qty: 3 -  NEW   Misc. w/o Cable Strain Relief

$1.50 ea.12/$15

Reserved for Photo
26 Contact Ribbon Cable Header
w/ Mounting Tabs

Qty: 3 -  NEW   Ansley

26 Contact Straight Header

Qty: 4 -  Ansley
Qty: 4 -  NEW   Ansley

26 Contact Rt. Ang. Header

Qty: 11 -  NEW   Ansley

26 Contact Rt. Ang. Latch/Eject Header

Qty: 4 -  Misc. w/o Ejector Latches

30
C
O
N
T
A
C
T
30 Contact Straight Header

Qty: 19 - HRS F3FB-30P

30 Contact Rt. Ang. Latch/Eject Header

Qty: 1 -  HRS w/o Ejector Latches

34

C
O
N
T
A
C
T
34 Contact Ribbon Cable Plug

Qty: 6 - Misc. w/o optional Cable Strain Relief

$1.50 ea.10/$10

34 Contact Straight Header

Qty: 5 -  NEW   Ansley

Reserved for Photo
34 Contact Ribbon Cable Header

Qty: 4 -  NEW   Ansley

34 Contact Latch/Eject Header

Qty: 39 - 3M #3431 with Ejector Latches

$2 ea.10/$15

Reserved for Photo
34 Contact Rt. Ang. Latch/Eject Header

Qty: 2 - Ansley w/o Ejector Latches

Reserved for Photo
34 Contact Rt. Ang. Header

Qty: 3 -  NEW   Ansley w/ Wire Wrap Pins

40

C
O
N
T
A
C
T

(Ansley Connector Image)
40 Contact Ribbon Cable Plug

Qty: 3 -  NEW   Ansley
Qty: 3 -  NEW   Ansley w/ Gold Contacts
Qty: 8 -  NEW   Ansley w/ Gold Contacts & w/ Cable Strain Relief
Qty: 1 -  NEW   3M  #3417
Qty: 7 - Grey in color w/ Cable Strain Relief
Qty: 1 - Misc. w/ Gold Contacts & w/ Cable Strain Relief

$1.50 ea.All 23 for $25

40 Contact Straight Latch/Eject Header

Qty: 5 - 3M  #3432 with Ejector Latches
Qty: 3 - 3M  #3432  w/o Ejector Latches
Qty: 2 - Ansley w/o Ejector Latches
Qty: 2 -  NEW   Ansley w/ Wire Wrap Pins & w/o Ejector Latches
Qty: 1 - Ansley w/ Wire Wrap Pins & w/o Ejector Latches

40 Contact Rt. Ang. Header

Qty: 2 - w/ Gold Pins

Reserved for Photo
40 Contact Rt. Ang. Latch/Eject Header

Qty: 1 - Berg w/ Gold Pins & Ejector Latches
Qty: 4 - Ansley w/ Gold Pins & w/o  Ejector Latches

44

C
O
N
T
A
C
T
44 Contact Ribbon Cable Plug

Qty: 2 -  NEW   Ansley w/ Cable Strain Relief

44 Contact Straight Header

Qty: 1 -  NEW   Ansley

50

C
O
N
T
A
C
T

(Ansley Plug)
50 Contact Ribbon Cable Plug

Qty: 2 -  NEW  HONDA  MFC-50RF w/ Cable Strain Relief
Qty: 1 -  NEW  DDK  5-3T w/ Cable Strain Relief
Qty: 1 - Ansley w/ Cable Strain Relief

$2 ea.  or  4/$7

Qty: 2 - Various New and Used w/o Cable Strain Relief

$1.50 ea.

50 Contact Straight Header

Qty: 2 - Ansley

50 Contact Straight Latch/Eject Header

Qty: 1 - 3M #3433 with Ejector Latches
Qty: 4 - 3M #3433  w/o Ejector Latches
Qty: 2 - AMP  w/o Ejector Latches

Reserved for Photo
50 Contact Rt. Ang. Latch/Eject Header

Qty: 1 - Honda MFC-50PM with Ejector Latches
Qty: 2 - 3M  #3433 w/o Ejector Latches
Qty: 2 -  NEW   3M  #3433 w/o Ejector Latches & w/ Wire Wrap Pins

Reserved for Photo
50 Contact Ribbon Cable Header

Qty: 9 -  NEW   3M  #3331 w/o Ejector Latches
Qty: 1 - Used  3M  #4650 with Ejector Latches

10
to
50

There's also a number of Ribbon Cable Plugs installed on ribbon
cable of various lengths up to 20 ft, or more, available plus
various lengths of ribbon cable with no connectors.

There are many other NEW & USED connectors of all types as well that aren't yet, and may never be, listed
so drop in, if you live nearby, or email & check for what's needed before starting that next project.


HPIB / IEEE488 / GPIB

Stackable Interface Cables

Qty: 1HP 10833B2M (6 ft)

$10 Ea.


25  NEW  ADC CJ1013
Coaxial Video Patch Jacks



Connector Cable End

ADC COAXIAL
VIDEO PATCH
JACKS

Connector Jack End

$75

for all 34 items

4 USED #465C Jacks plus 4 USED 124Ω NE341F Plugs

1  NEW  Jack to BNC


Card Frame &
Connectors

Card Frame is for (4) 4-1/2" x 6" cards.

Connectors are wire-wrap, dual-row,
72 contact with .100" spacing,
 EDAC P/N 345-072-540-202.

If required, the frame has space for a
5th connector & set of rails which I likely have somewhere and will include if I do.

Qty: 1$30


Items for Sale
Home Page
Amateur Radio
Home Page
sbszoo.com
Home Page
