Electrolytic Capacitors

Capacitors are used, unless noted as New Old Stock ( NOS ),
but each capacitor sold is checked for capacitance and ESR before shipment.

Prices, details and other information often only gets added as enquiries are received, so
Email if additional information is required and I'll add it and get back to you as soon as possible.

VDC	mfd	Manufacturer	Dia. x H / Mntg. hole	Qty	Each
25V	1900 mfd	Cornell Dubilier KP10198	1-1/2" dia. x 4" 23mm (7/8") hole.	4	$2 to $3 ea.
35V	250 mfd	ROE Elko - W2	1" dia. x 1-3/8" 18mm (≈3/4") hole.	1
40V	10,000 mfd	ROE Elko - EH	1-3/8" dia. x 2-1/2" 18mm (≈3/4") hole.	1

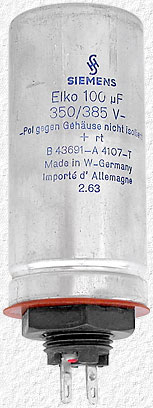

350V	100 mfd	Siemens/Elko B 43691-A 4107-T	1-3/8" dia. x 3" 18mm (≈3/4") hole.	2

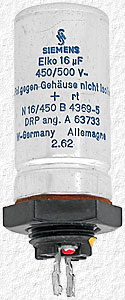

450V	16 mfd	Siemens/Elko N 16/450 B 4369-5	1" dia. x 2" 18mm (≈3/4") hole.	1
500V	50 mfd	Siemens/Elko 50/500 B 4369-5	1-3/8" dia. x 3-1/2" 18mm (≈3/4") hole.	2
600V	4 mfd	Sangamo 4106-4	1-1/2" dia. x 3-1/2" 18mm (≈3/4") hole.	1

**5/16" Bolt Mounted Capacitors**
VDC	mfd	Manufacturer	Can Dimensions	Qty	Each
63V	2200 mfd	Siemens LL B41584-A8228-Q	1-3/8" dia. x 2-3/16" (with screw terminals like computer type caps below)	1	$4 ea.
160V	1000 mfd	Elko ROE IIA −40/+85°C	1-3/8" dia. x 2-3/8"	2	$4 ea.
160V / 110V 50Hz	20 mfd	SEL MP K1 BCMP 20/160/2 −55/+85°C	1-5/8" dia. x 3-3/16" (bolt was removed so actually a clamp style capacitor)	1	$5 ea.
250V / 125V 50Hz	8.0 mfd	SEL / SAF MP K2 BCMP 8/250/1 −25/+85°C	1-1/2" dia. x 1-7/8"	2	$5 ea.
400V	2.2 mfd	Siemens MKV B25834-B4225-K001	1-3/16" dia. x 1-15/16"	1	$3

Also see the AC, Oil Filled & High Voltage Capacitor Page for similar SEL, SAF & Siemens capacitors.

In addition to the axial & radial lead capacitors =>100V listed below, I have countless <100V ones which have been removed from circuit boards and are nice to have handy for prototyping & building circuits. Send me a list with the type (Axial or Radial), value, voltage (or min. voltage) & number of each that you would like and I'll get back to you or simply order a bag of:

100 misc. value (1 – 100 mfd, 10 – 99 volt) Radial Lead Capacitors for $5

			Axial Lead Capacitors =>100 VDC
VDC	mfd	Qty	Manufacture / PN / Other Information	Dimensions	Cost
100V	1 mfd	15	Rubycon NOS	1/4" dia. x 1/2"	$1 ea. or less
	4.7 mfd	1	Rubycon CE W 85°C NOS	1/4" dia. x 5/8"
	10 mfd	3	Nichicon 85°C NOS	5/16" dia. x 3/4"
		1	Nichicon 85°C	5/16" dia. x 7/8"
		1	Sprague 30D	3/8" dia. x 7/8"
		4	Sprague 526498 NOS	3/8" dia. x 1"
		10	Sprague 526498	3/8" dia. x 1"
	470 mfd	1	Siemens GPF B41010	11/16" dia. x 1-9/16"	$1
150V	1 mfd	1	Arcolytic NOS	5/16" dia. x 3/4"	$1
	10 mfd	1	Aerovox PRS 1410 85°C	1/2" dia. x 1"	$1
	15 mfd	1	Sprague 30D1103	3/8" dia. x 1-5/16"	$1
	30 + 50 mfd	1	Blu-Seal BSD-5315 75°C NOS w/ clamp & cardboard sleeve	7/8" dia. x 2-1/4"	$3
	40 + 40 mfd	1	Mallory TCD 48 NOS w/ clamp & cardboard sleeve	1" dia. x 2-1/8"	$3
	40 + 40 mfd	2	Aerovox PRT 2-40150 w/ clamp	7/8" dia. x 2-3/4"	2/$3
	50 mfd	1		11/16" dia. x 1-3/16"	$0.50
	100 mfd	4	Sprague 39D	5/8" dia. x 2-3/4"	$1.50 ea. or 4/$5
	200 mfd	1	Mallory TC496B NOS	7/8" dia. x 2-1/8"	$3
	430 mfd	1	Mepco/Electra 3050JL431T150	1" dia. x 2-3/16"	$2
160V	10 mfd	1	Panasonic(Matsushita)	7/16" dia. x 1-1/8"	$1
160V	15 mfd	1	Panasonic(Matsushita)	7/16" dia. x 1-1/4"	$1
200V	10 mfd	1	Rubycon 80°C	1/2" dia. x 1-1/4"	$.50
	20 mfd	1	Cornell Dubilier BR11199	5/8" dia. x 1-1/16"
		1	Nippon CE02W	1/2" dia. x 1-1/4"
		1	Mallory TCG200N200 G1C3P	5/8" dia. x 1-1/8"
		1	GI 977-2195	5/8" dia. x 1-1/8"
	20 + 20 mfd	1	Nichicon 1012607-05 105°C - Dual Cap	1/2" dia. x 1-5/8"	$5
	47 mfd	1	Intercap 85°C NOS	5/8" dia. x 1-5/8"	$3
250V	1 mfd	2	Siemens/Elko B43715A	1/4" dia. x 1-1/4"
	1 mfd	1	Eromet	1/2" dia. x 1"	$2
	4 mfd	1	Siemens/Elko B43715A	3/8" dia. x 1-5/8"
	4.7 mfd	1	Rubycon CE W 85°C	3/8" dia. x 13/16"
	20 mfd	1	SS	5/8" dia. x 1-1/4"
	20 mfd	2	Sprague 500D NOS	1/2" dia. x 1-3/4"	$4 ea
	50 mfd	2	Mallory TC59C NOS	3/4" dia. x 1-5/8"	$3 ea.
	100 mfd	1	Sprague 39D	7/8" dia. x 2-1/8"	$2
	100 mfd	2	Marcon CE02W 85°C	7/8" dia. x 2"	2/$3
300V	5 mfd	4	Mallory 23D82077C08	1/2" dia. x 1-1/4"
315V	3.3 mfd	3	Rubycon CE D 80°C	7/16" dia. x 1"
315V	10 mfd	1	Rubycon 80°C	1/2" dia. x 1-1/4"	$.50
350V	8 mfd	1	Siemens/Elko −20/+70°C	5/8" dia. x 2-3/8"	$2
	8 mfd	4	Mallory TC61C NOS	5/8" dia. x 1-3/8"	$3 ea. or 4/$10
	20 mfd	1	Mallory TC65B	3/4" dia. x 1-3/8"
	32 mfd	2	Plessey CE 513/1	1" dia. x 2"	2/$3
	30 mfd	1	Aerovox PRS 1660 85°C	13/16" dia. x 1-7/8"	$1
	40 mfd	1	CDE WBR 40-350 85°C	3/4" dia. x 1-3/4"	$1
	60 mfd	1	Mallory TC68B	7/8" dia. x 2-1/8"	$1.50
425V	350 mfd	2
450V	2 mfd	1	Sprague 500D	3/8" dia. x 1-5/16"	$1
	2 mfd	1	Mallory TC695B	5/8" dia. x 1-3/16"	$1
	4 mfd	1	Siemens B43651A −20/+70°C	9/16" dia. x 1-1/8"	$1
	4 mfd	1	Mallory TC697A 85°C NOS	5/8" dia. x 1-3/8"	$4
	5 mfd	1	Sprague 500D NOS	1/2" dia. x 1-1/4"	$2
	8 mfd	3	Mallory TC71C	3/4" dia. x 1-1/8"	$1.50 ea. or 3/$3
	10 mfd	1	Aerovox PRS 1720 85°C w/ clamp & cardboard sleeve	11/16" dia. x 1-3/4"	$1
	16 mfd	2	Aerovox PRS 1730 85°C w/ clamp & cardboard sleeve	13/16" dia. x 2"	2/$3
	50 mfd	4	10816603 85°C w/ clamp & cardboard sleeve	1-1/8" dia. x 3-1/2"	$4 ea. or 4/$12
500V	3.3 mfd	1	Panasonic(Matsushita)	1/2" dia. x 1-3/8"	$2
	4 mfd	1	Cornell Dubilier BR3509	1/2" dia. x 1-1/8"	$3 ea. or 2/$5
	8 mfd	1	Sprague ATOM TVA-1902	7/8" dia. x 1-5/8"	$2
	10 mfd	1	Sanyo CE02W	7/8" dia. x 1-5/8"	$2
600V	20 mfd	5	Mallory TC96A NOS w/ clamp & cardboard sleeve	1" dia. x 3-1/8"	$5 ea. or 5/$20

			Radial Lead Circuit Board Type Aluminum Can Capacitors =>100V (plus some larger value lower voltage ones)
VDC	mfd	Qty	Manufacture / PN / Other Information	Dimensions	Each








30V	2000 mfd 4500 mfd	1	2 Section Capacitor 23R29944A05 85°C Isolated Case	1-3/8" dia. x 3-1/4"
160V 200V	47 + 47 mfd 470 mfd	1	3 Section Capacitor SAMPO	1-3/8" dia. x 2-3/4"

Twist-Lock & Clamp Mounted Capacitors
FP Twist-Lock Style	PFP Twist-Lock / PCB Style	Clamp Style
Note: Only some Twist-Lock Capacitors have a Phenolic or Metal Mounting Plate installed and Clamp Style Capacitors are without a Clamp so be sure to ask for a Mounting Plate or Clamp if one is required.PP – w/ Phenolic PlateMP – w/ Metal Plate

1 Section Capacitors
VDC	mfd	Qty	Style	Manufacture / PN / Other Information	Dia. x H	Each
15V	1000 mfd	1	TL	Mallory FP 85°C	1" dia. x 1-1/2"
16V	15000 ufd	1	Clamp	−10+50% −40/+85°C Type 1 10.5A @ 100 Hz 50°C	1-3/8" dia. x 3-1/8"
25V	2300 mfd	1	Clamp	Mallory CGS	1" dia. x 2-3/16"
	3300 mfd	1	Clamp	−10+50% −40/+85°C Type 1 Hi-Ripple 3.7A @ 100 Hz	1" dia. x 2"
	6800 mfd	2	Clamp	−10+50% −40/+85°C Type 1 Hi-Ripple 7.3A @ 100 Hz	1-3/16" dia. x 3-1/8"
35V	450 mfd	1	TL/PCB	Motorola Type PFP 23D82394A11 85°C	1" dia. x 1-1/2"
	2200 mfd	1	Clamp	Sanyo CE 62 W - 2A Ripple	1" dia. x 2"
	3600 mfd	2	TL	Motorola Type FP 23D83093G23 85°C	1-3/8" dia. x 2-1/2"
	6800 mfd	1	Clamp	Rubycon CE62W 85°C	1-3/16" dia. x 2"
	6800 mfd	1	Clamp	Rubycon CE62W 85°C	1-3/8" dia. x 2-7/16"
40V	2200 mfd	3	Clamp	−10+50% −40/+85°C Type 1 Hi-Ripple 2.9A @ 100 Hz	1" dia. x 2"
40V	2700 mfd	2	Clamp	Mallory CGS −10+50%	1" dia. x 3-11/16"
50V	1000 mfd	1	TL	Sprague TVL 1338 85°C	1-3/8" dia. x 2"
50V	6800 mfd	2	Clamp	Rubycon CE62W 85°C	1-3/16" dia. x 2"
75V	1500 mfd	1	TL/PCB	Sprague MRI-21-1002 85°C *PP	1-3/8" dia. x 2-1/2"
75V	1500 mfd	3	TL/PCB	Sprague MRI-21-1007 85°C *PP	1-3/8" dia. x 2"
100V	1500 mfd	1	TL	Nichicon CE W	1-3/8" dia. x 2-1/2"
160V	220 mfd	1	Clamp	Nippon C E W Hi-Ripple 85°C	1-3/16" dia. x 1-5/8"
200V	50 mfd	2	TL	Sprague 0180-0372 Non-Polarized	1" dia. x 1-7/8"
250V	150 mfd	2	TL	Sprague TVL-1540J 85°C *MP	1-3/8" dia. x 2-1/2"
250V	220 mfd	1	Clamp	Philips LL 2222-052-13221	1-3/16" dia. x 1-3/4"
300V	80 mfd	1	TL	Aerovox AFH1-35 w/ Cardboard Sleeve	1-1/8" dia. x 3"
300V	150 mfd	1	TL	Sprague TVL-1584 85°C *PP	1-3/8" dia. x 3-1/2"
350V	125 mfd	1	TL	Sprague TVL-1638 85°C *PP	1-3/8" dia. x 3-1/2"
350V	150 mfd	3	TL	NOS Sprague TVL-1642 *PP	1-3/8" dia. x 2-1/2"	$10 ea.
450V	20 mfd	4	TL	Sprague 0180-0011 85°C Isolated Case *PP	1" dia. x 2-1/8"
	20 mfd	1	TL	Aerovox w/ Cardboard Sleeve *PP	1" dia. x 2-1/8"
	100 mfd	1	TL	Mallory FP150 85°C *PP	1-3/8" dia. x 3"
	125 mfd	1	TL	Sprague TVL-1760 85°C *MP	1-3/8" dia. x 4"

2 Section Capacitors
VDC	mfd	Qty	Style	Manufacture / PN / Other Information	Dia. x H	Each
10V	800 mfd 800 mfd	1	TL	Mallory FP 4450-5603 85°C	1" dia. x 2"
15V	1500 mfd 1500 mfd	3	TL	Sprague 0180-0028 Isolated Case	1-3/8" dia. x 2-1/2"
25V	1000 mfd 1000 mfd	1	TL	Mallory WP 15533300 85°C	1-3/8" dia. x 2"
40V	3400 mfd 3400 mfd	1	Clamp	MUO 74-4 −40/+85°C 9.1A	1-3/8" dia. x 3-1/8"
125V	20 mfd 750 mfd	1	TL	211766 85°C *MP	1-3/8" dia. x 3"
210V	80 mfd 500 mfd	2	TL/PCB	Mallory PFP 102P80291 85°C	1-3/8" dia. x 3"
250V	40 mfd 40 mfd	1	TL	CDE UP4425 85°C *PP	1" dia. x 3"
250V	80 mfd 500 mfd	2	TL/PCB	CDE UPNL105	1-3/8" dia. x 3-1/2"
300V	20 mfd 150 mfd	1	TL	Mallory 211661 85°C *MP	1-3/8" dia. x 1-3/4"
350V	50 mfd 50 mfd	2	Clamp	PLESSEY	1-3/8" dia. x 1-15/16"
450V	40 mfd 120 mfd	1	TL	Sprague 0180-0030 Isolated Case *PP	1-3/8" dia. x 3-5/8"

3 Section Capacitors
VDC	mfd	Qty	Style	Manufacture / PN / Other Information	Dia. x H	Each
200V	50 mfd 200 mfd 250 mfd	1	TL	NOS Sprague TVL 3491 85°C	1-3/8" dia. x 3-1/2"	$10
350V	32 mfd 32 mfd 32 mfd	2	Clamp	PLESSEY	1-3/8" dia. x 1-15/16"
450V	20 mfd 30 mfd 80 mfd	1	TL	NOS Type FP 85°C 1.0A Ripple at 120 Hz	1-3/8" dia. x 3-1/2"	$10

4 Section Capacitors
VDC	mfd	Qty	Style	Manufacture / PN / Other Information	Dia. x H	Each
300V	60 mfd 100 mfd 150 mfd	1	TL	Sprague 44-204-07 85°C	1-3/8" dia. x 3-1/2"
25V	60 mfd	1	TL	Sprague 44-204-07 85°C	1-3/8" dia. x 3-1/2"
300V	25 mfd 50 mfd	2	TL	NOS Motorola (Mallory) 23K851506 85°C	1-3/8" dia. x 3"	$10
450V	10 mfd 50 mfd	2	TL	NOS Motorola (Mallory) 23K851506 85°C	1-3/8" dia. x 3"	$10
450V	20 mfd 20 mfd 20 mfd 20 mfd	2	TL	AEROVOX AFH 4-14 *MP	1-3/8" dia. x 3"
	20 mfd 20 mfd 20 mfd 20 mfd	2	TL	AEROVOX AFH 4-14 *PP w/ Cardboard Sleeve	1-3/8" dia. x 3-1/4"
	20 mfd 20 mfd 20 mfd 20 mfd	1	TL	Sprague 0180-0025 85°C *PP	1-3/8" dia. x 2-1/2"
500V	15-20 mfd 15-20 mfd 15-20 mfd 15-20 mfd	1	TL	NOS CDE DD0179.5A w/ Cardboard Sleeve	1-3/8" dia. x 2-1/8"	$10

			Computer Type Capacitors with Screw Terminals
VDC	ufd	Qty	ManufactureP/N	Dia. x H	Each
6V	20,000 mfd	1
6V	100,000 mfd	1
7.5V	15,000 mfd	3
10V	20,000 mfd	1
12V	14,000 mfd	6
15V	5,000 mfd	1
	21,000 mfd	1
	28,000 mfd	1
	30,000 mfd	1
	40,000 mfd	2
	63,000 mfd	1
	64,000 mfd	2
	77,000 mfd	2
	124,000 mfd	2
16V	10,000 mfd	1
16V	14,000 mfd	3	NOS
20V	23,900 mfd	2
	38,000 mfd	2
	100,000 mfd	1
25V	3,100 mfd	2
	10,000 mfd	7
	22,000 mfd	1
	40,000 mfd	3
	69,000 mfd	1
30V	1,500 mfd	2
	4,900 mfd	2	NOS
	5,000 mfd	4
	20,000 mfd	2
	27,000 mfd	1
	30,000 mfd	3
	100,000 mfd	2
40V	4,700 mfd	3
	6,300 mfd	1
	7,300 mfd	3
	8,400 mfd	2
	19,000 mfd	3
	25,000 mfd	2
	31,000 mfd	10
	68,000 mfd	2
50V	2,900 mfd	5	NOS
	5,000 mfd	2
	12,000 mfd	2
55V	6,000 mfd	1
55V	10,000 mfd	1
75V	3,000 mfd	1
	3,500 mfd	1
	25,000 mfd	1
100V	1,000 mfd	1	SPRAGUE 5241527
200V	500 mfd	2	SPRAGUE COMPULYTIC 32D6170
	500 mfd	1	SPRAGUE POWERLYTIC 5261375
	500 mfd	2	MALLORY HC-20005
	590 mfd	2	MALLORY CGS591T200R3C3PL +85°C
	5,500 mfd	2	Capacitor Technology FA7 552F200FI1H +85°C
350V	330 mfd	1	ROE Elko −40+85°C

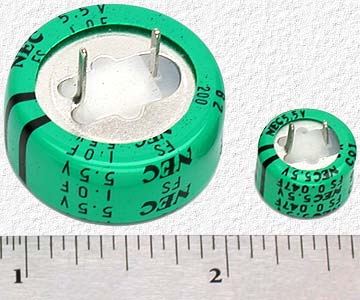

NEC FS Series
Super-Caps

5.5 Volt -25C to +70C

These are NOS capacitors ideal for
up to several ma. for up to 30 minutes
or several uA for many weeks.

1.0 Farad – Qty: 24 – $5 ea. or 10/$45

Nominal cap: 1.0 F (charge) 1.3 F (discharge)
ESR = 7 ohms at 1 kHz

.047 Farad – Qty: 9 – $2 ea.

Nominal cap: .047 F (charge) .072 F (discharge)
ESR = 40 ohms at 1 kHz

This page was last updated: September 08, 2008
