Switches / Timer Switches / Circuit Breakers

Circuit BreakersToggle SwitchesTimer Switches
(Most Toggle and other types of switches are not yet listed.)

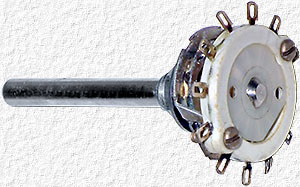

Rotary Switches

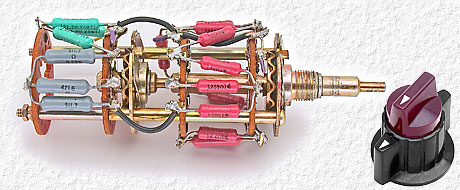

S2-S3

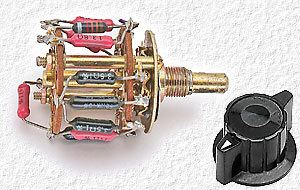

S7

HP-236A Audio Osc. Attenuator / Level Switches

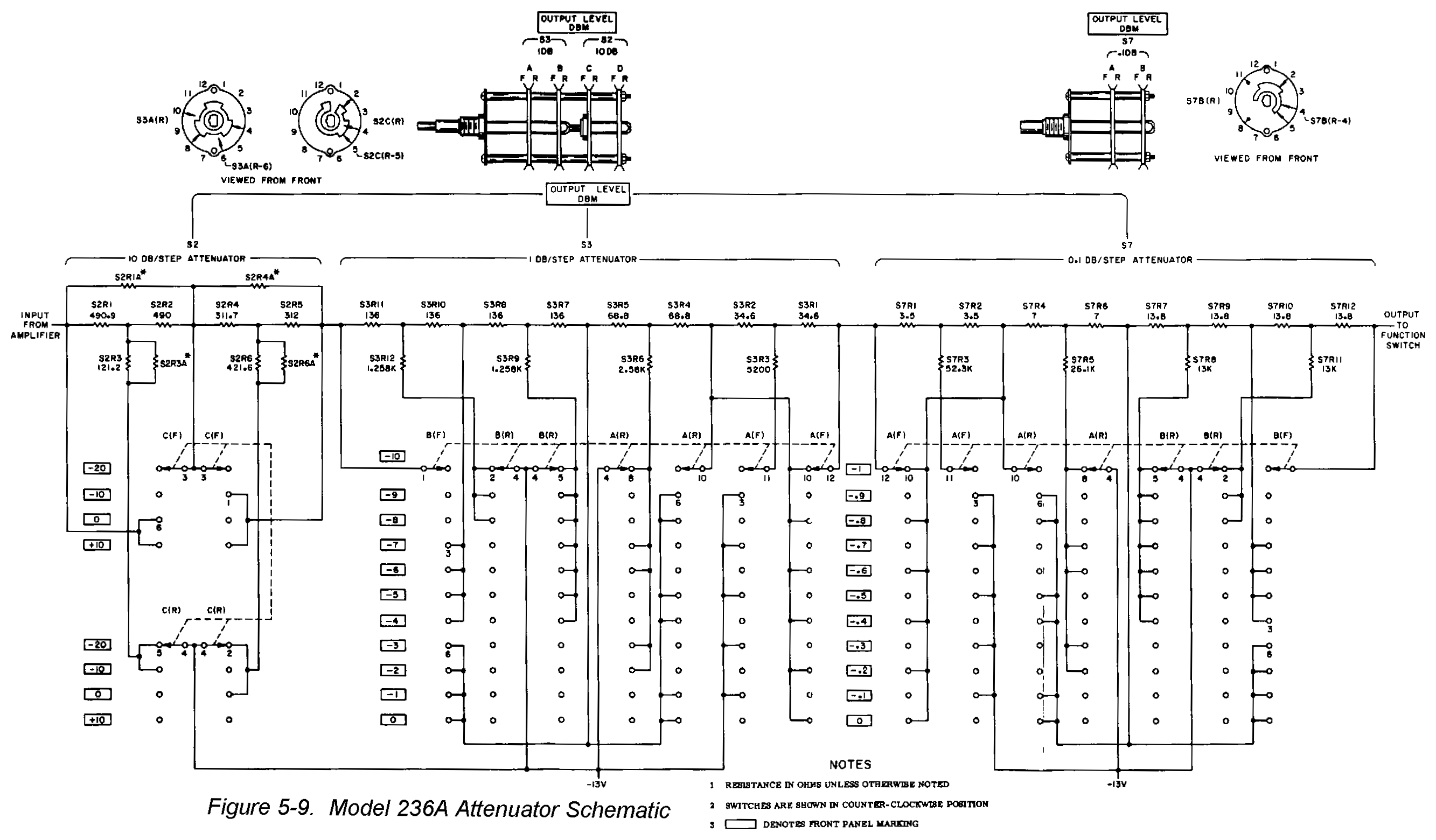

c/w Resistors. See Schematic.
One is a dual shaft switch that requires a dual knob and the original knobs
are also available unless already sold.  (S2-S3 knobs were sold)

Qty: 2 Sets of S2-S3 & S7 Switches – $15/set  - or -  $20/set with Knobs

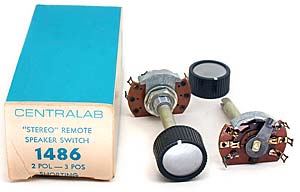

Centralab 1486

"Stereo" Remote Speaker Switch

 NEW

2 pole − 3 position shorting
(Spkr 1 − Spkr 2 − Spkr 1 & 2)

Qty: 2$5 for both

1 Pole − 2 Position Shorting Speaker Switch

Qty: 2$4 for both

Following Switches are Similar to Electroswitch M5 Series

ASM 1045F-102-2NY

1" dia.
2 pole − 2 position
45 deg. indexing
2 amps @ 28 VDC
2.5 amps @ 120 VAC

Qty: 20

ASM 1045F-101-2NY

1 pole − 2 positionQty: 1

ASM 1030F-101-3NY

1 pole − 3 positionQty: 1

ASM 1030F-101-6NY

1 pole − 6 positionQty: 4

ASM 1030F-101-8NY

1 pole − 8 positionQty: 1

ASM 1030F-102-5NY

2 pole − 5 positionQty: 2

ASM 1030 units are 30° indexing,
ASM 1045 units are 45° indexing.

$10 ea.6/$5015/$100all 29/$145

Grayhill

1-1/8" dia.
Adjustable Stop
1 pole − 2-12 position
30 deg. indexing

Qty: 8$10 ea.8/$60
Tosoku

2 Position 4P

Qty: 1$5

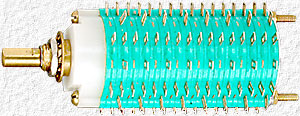

2 Position 48 Pole

 NEW Qty: 1$15
3SE

3 Position 4P

Qty: 2$4 ea.
3SE

3 Position 4P

 NOS Qty: 2$4 ea.
Oak

4 Position 1P

Qty: 3$4 ea.3/$10

4 Position 3P

w/ knob

Qty: 5$4 ea.5/$20
3SE

4 Position 6P

 NOS Qty: 1$4 ea.
TMS

5 Position 2P

Qty: 1$4

6 Position 2P

 NOS Qty: 5$4 ea.
OAK

6 Position 4P

2 Poles are regular shorting type, but other 2 poles
make contact with all but the selected position.

 NOS Qty: 6$5 ea.6/$25
Greyhill

8 Position 1P

Qty: 1$4 ea.

12 Position 1P

Continuous Rotation & w/ knob

Qty: 1$4 ea.
C&K

12 Position 1P

Qty: 2$4 ea.

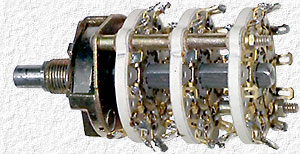

Switches with Ceramic Decks
#1 6 Position 6P 3 Deck shaft 5/16"L  Qty: 1  $15 Or All
7/$60
#2 2 - 6 Position 2P 2 Deck shaft 3/8"L  Qty: 1  $10
  2 decks as it's a 4 pole switch, but only 1 pole on ea. deck is OK.
#4 2-12 Position 1P 1 Deck  NOS  Qty: 1  $16
#5 2-12 Position 1P 1 Deck shaft 5/16"L  Qty: 2  $10 ea.
#6 2-12 Position 1P 1 Deck shaft 5/8"L  Qty: 1  $10
#7 2-12 Position 5P 5 Deck shaft 1/2"L  Qty: 1  $15
CTS Switches
#1 2 Position 12P 2 Deck  NOS  Qty: 1  $5 Or All
13/$50
#2 6 Position   2P 1 Deck shaft 1/4"L  Qty: 1  $5
#3 2 - 6 Position   3P 2 Deck shaft 3/8"L  Qty: 1  $5
     3 pole as 1 deck is a 2-12 Position 1 Pole deck.
#4 2-11 Position   1P 1 Deck  NOS  Qty: 3  $5 ea.
#5 2-11 Position   1P 1 Deck shaft 3/8"L  Qty: 2  $4 ea.
#6 2-12 Position   1P 1 Deck  NOS  Qty: 1  $5
#7 2-12 Position   1P 1 Deck shaft 3/8"L  Qty: 1  $4
#8 2-12 Position   2P 2 Deck  NOS  Qty: 1  $8 **
  ** Never used, but shaft has been cut down to 7/8" long.
#9 2-12 Position   3P 3 Deck  NOS  Qty: 1  $10
#10 2-12 Position   4P 4 Deck shaft 1/2"L  Qty: 1  $10

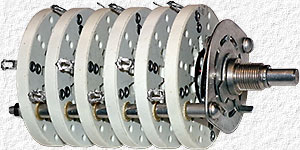

High Voltage Medium High Power Steatite (Ceramic) Power Switches
for use in transmitters and other high voltage equipment.

2-18 Position 1P, Shorting, 20° Indexing

2" dia. x 1-1/2" deep w/ 3/4" long shaft

Qty: 1

 $15 ea.

2/$25

4/$45

2-6 Position 6P, Non-Shorting, 20° Indexing

2" dia. x 2-3/4" deep w/ 3/4" long shaft

Qty: 1

5 Position 3P, Non-Shorting, 45° Indexing

2" dia. x 3" deep w/ 3/8" long shaft

Qty: 2
Standard Phenolic Deck Switches with 5/16" to 1/2", or longer, shafts.
 To take a photo of each one simply isn't worth the time for so few $ so e-mail if further information is needed.
The total individually keeps changing as some are sold, but get all that remain for 50% less.




Positions Poles # Qty Dia. Decks Notes  (30° indexing unless noted) otherwise Cost
2 Pos 3P #1 1 1-7/8" 1 Deck   $2
3P #2 1 1-3/8" 1 Deck Shorting $2
4P #3 2 1-1/4" 1 Deck   $1 ea.
3 Pos 6P #4 1 1-3/8" 2 Decks   $4
4 Pos 1P #5 2 1-3/8" 1 Deck Off, Com to P1, C to P1+2, C to P1+2+3 $1 ea.
1P #6 2 1-7/8" 1 Deck 60° indexing $1 ea.
2P #7 2 1-1/4" 1 Deck   $1 ea.
6P #8 1 1-1/4" 2 Decks Shorting, Off + 3 Contact Positions $3
5 Pos 2P #10 2 1-3/8" 1 Deck ITT $2 ea.
2P #11 1 1-5/8" 2 Decks   $3
4P #12 1 1-5/8" 2 Decks   $5
4P #13 1 1-3/8" 2 Decks ITT (space for 3rd deck - 1 was robbed for repairs) $2
6P #14 1 1-3/8" 3 Decks ITT $3
8P #15 3 1-3/8" 4 Decks ITT $2 ea.

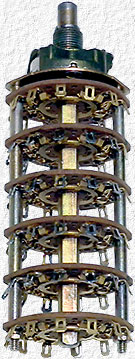

12P #16 1 1-3/8" 6 Decks UNIDEX $7
10P #17 1 1-5/8" 5 Decks 6 poles have contacts in Pos 1-5
2 poles have contacts in Pos 4 only
1 pole  has contacts in Pos 1-4 only
1 pole  has contacts in Pos 4-5 only		 $5
6 Pos 2P #18 1 1-1/4" 2 Deck   $1
9 Pos 1P #20 1 1-1/4" 1 Deck Shorting $1
6P #21 1 1-3/8" 6 Decks UNIDEX $6
2-11 Pos 1P #22 1 1-5/8" 1 Deck   $4
2P #23 1 1-1/4" 2 Decks Oak - Shorting $4
2P #24 1 1-3/8" 2 Decks CRL $4
3P #25 1 1-1/4" 3 Decks Oak $5
12 Pos 1P #26 1 1-3/8" 1 Deck ITT - Cont. Rotation, 11 Contact Positions + Off $2
3P #27 1 1-3/8" 3 Decks ITT - Cont. Rotation, 11 Contact Positions + Off $3
4P #28 1 1-3/8" 4 Decks ITT - Cont. Rotation, 11 Contact Positions + Off $4
#26 has 1 deck, but will accommodate 2 more (2 of the 3 original decks were robbed for repairs) and
#26 to 28 are all the same type of switch so several different switch configurations are possible using all 3,
like two 2 pole & one 4 pole switch or one 2 pole & two 3 pole switches.

Also available:
A number of misc. vintage & modern switches of various styles and switching configurations, plus an assortment of decks with various switching configurations, shafts and other switch hardware for repairs or building custom switches. It's not worth listing and selling these items individually so they are being offered simply as

1 Box of Misc. Switches & Parts for $10

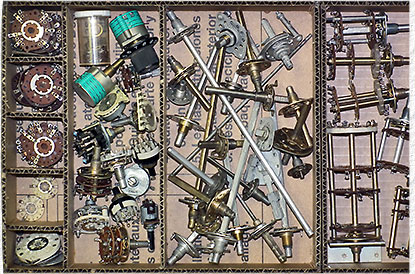

Left - Photo of some of the items. More are added as they are found in obsolete equipment, but 1 or 2 could also disappear if needed for a project.

Circuit Breakers

Magnetically Tripped Circuit Breakers

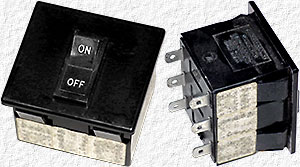

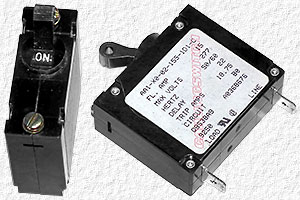

CarlingSwitch, Inc.
AA1-X0-02-155-1D1-C

 $20 ea.

2/$35

3 or
more -
$15 ea.
Qty: 2 15A  277V  50/60 Hz  Trip: 18.75A  Delay 22
Similar to CarlingSwitch above,
but with Screw Terminals.

T.I. Klixon 51MC17-128-20
Qty: 1 20A  250V   60 Hz   Curve 128

Airpax UPG6-5415-1
Qty: 1 20A  250V  50/60 Hz  Trip: 25A  Delay 66

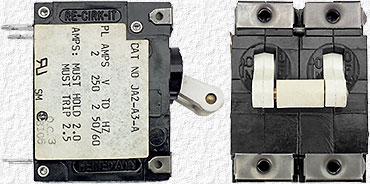

HEINEMANN  JA2-A3-A
** 2 Pole Breaker

 $25 ea.

2/$45

3/$60
Qty: 1 2A  250V  50/60 Hz   Trip: 2.5A   Delay 2

Airpax UPGH66-4090-0
** 2 Pole Breaker - Similar to Heinemann shown,
but with Black Handles & Screw Terminals
Qty: 2 10A  65VDC  Trip: 12.5A  Delay 51

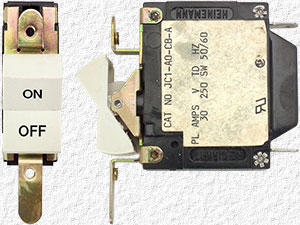

HEINEMANN  JC2-A3-CB-A
** 2 Pole Breaker -
Similar to single pole breaker shown, except twice as wide.

Qty: 1   15A  250V  50/60 Hz  Trip: 18.75A  Delay 2

 $25



Magnetically Tripped Circuit Breakers
with Auxiliary Alarm Switch

Airpax 8019-A UPGX 2

Single Pole Breaker with SPST Auxiliary Switch

Qty: 1   15A 250V 50/60 Hz  Trip: 18.8A  Delay: 62F

 $25 ea.

2/$45

3 or
more -
$20 ea.

Airpax URG1-IREC2-1084-1

with 10A 250VAC SPDT Auxiliary Switch
Qty: 2 6A  250V  50/60 Hz  Trip: 7.5A  Delay: 627

Airpax UPG1-IREC2-1753-1

with 10A 250VAC SPDT Auxiliary Switch
Qty: 1 5.0A  65VDC Trip = 6.25A Delay = 51

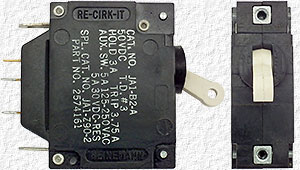

HEINEMANN  JA1-B2-A

with 5A 250VAC SPDT Auxiliary Switch
Qty: 1 3.0A 50VDC Trip: 3.75A Delay: 3
Qty: 1 5.0A 50VDC Trip: 6.25A Delay: 3
Qty: 1 7.5A 50VDC Trip: 9.40A Delay: 3
Qty: 1 10.0A 50VDC Trip: 12.5A Delay: 3

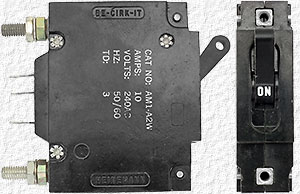

HEINEMANN  AM1-A2-W

with Auxiliary Switch
Qty: 5   5A  250V  50/60 Hz Delay: 3
Qty: 2 10A  250V  50/60 Hz Delay: 3
Qty: 1 15A  250V  50/60 Hz Delay: 3
2 Pole Breaker similar to
Heinemann JA1-B2-A above,
except twice as wide and with
2 switch handles tied together.

HEINEMANN  JA2-Z64-1

** 2 Pole Breaker with Auxiliary Switch

$30
Qty: 1 3A  250V  60/400 Hz Delay: 2

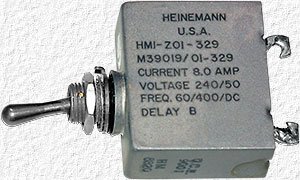

Heinemann HMI-Z01-329
M39019/01-339 Switch / Breaker

8 Amp   240/50 Volts   Freq: 50/400/DC   Delay 'B'

Qty: 1  $20

 $20 ea.

2/$35

3/$45

API -  M39019/01-333

10 Amp   240/50 Volts   Freq: 50/400/DC   Delay 'B-F'

Qty: 1  $20

Heinemann VP3HE
Switch / Breaker

5 Amps   120 VAC   60 Hz   Curve '1'

Qty: 1  $20

3 Pole Airpax

 Circuit Breaker / Switch

2.5A + 2.5A  250V  50/60 Hz
+ 20A 32VDC

Qty: 1$10

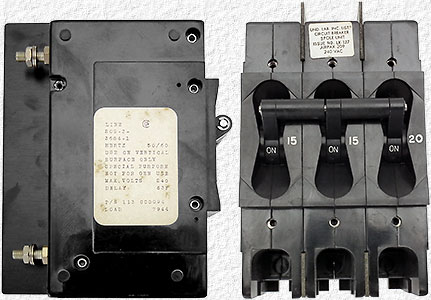

Larger 3 Pole Airpax
209-3-3684-1

Switch / Circuit Breaker

15A / 15A / 20A 240V 50/60 Hz
Delay 63F

Qty: 1$30

P&B (Potter & Brumfield) Circuit Breakers

240VAC  /  50VDC

1A  W58XB1A4A-1  Qty: 3
5A  W58XB1A4A-5  Qty: 3

15A  W58XA3A10B15  Qty: 1
20A  W58XB1A4A-20   Qty: 2
30A  W58XB1A4A-30   Qty: 1

Most are   NOS      $5 ea.

Heinemann KD1 Circuit Breaker

32VDC/250VAC

.25A  Qty: 22.0A  Qty: 3
3.0A  Qty: 25.0A  Qty: 3
7.0A  Qty: 2 10A  Qty: 2
$3 ea.2/$5All 14/$30

E-T-A 100P80014 Circuit Breaker

1A 250VAC #44-100-P50  Qty: 4
2A 250VAC #44-100-P10  Qty: 1

$4 ea.All 5/$15

Toggle Switches

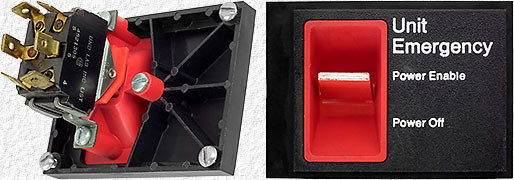

DPDT Switch Assembly #SWA1

2.5A Inductive 125V / 2A 277V
Black Front is 3-1/16" x 2-3/16"
and raised center area fits a
2-9/16" wide x 1-15/16" cut-out.

Qty: 4 $3 ea.2+/$2.50 ea.

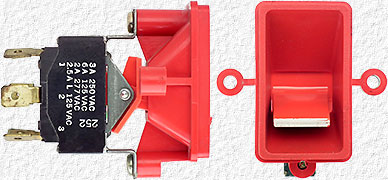

DPDT Switch Assembly #SWA2

6A 125VAC, 3A 250VAC, 2A 277VAC
2.5A Inductive 125VAC
Fits a 1" wide x 1-3/4" cutout.

Qty: 3 $3 ea.2+/$2.50 ea.

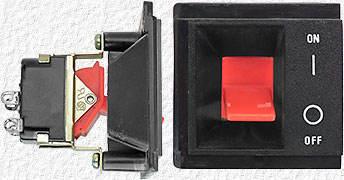

DPST Switch Assembly #SWA3

15A 125VAC, 10A 250VAC, 3/4 H.P. 250VAC
Fits a 2" wide x 1-3/4" cutout.

Qty: 2 $3 ea.2+/$2.50 ea.

DPDT Switch Assembly #SWA4

Fits a 1-3/16" wide x 2-1/16" cutout.

Qty: 1 $3(or $2.50 with another switch purchase)

Timer Switches

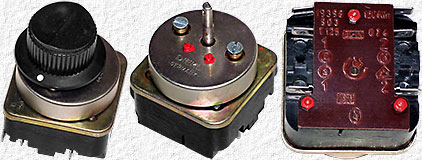

DIEHL 19398  903  T125

120 Minute Timer Switch
w/ Time-Out Bell Alarm

16A 250V / 10A 380V DPDT Sw.

170gQty: 2$10 ea.2/$15
