Table Top & Wall Wort Power Supplies

Linear Table Top

Table Top - LinearTable Top / Wall Wort - SwitchingTable Top - AC OutputWall Wort - AC Output

HP C2175A
Mfr. Lucent 3502A

Input: 120 VAC  0.18A  23VA
Output: 30 VDC  0.4A  12W
with 6.5mm O.D. Coaxial Plug

3−1/2" x 2−5/8" x 2−1/8"h

0.61kgQty: 1$5

AULT 7712-305-409

Input:120 VAC
Output:
+5 VDC   0.6 Amp
+/−12 VDC   0.2 Amp

1.06kgQty: 2$20 ea.

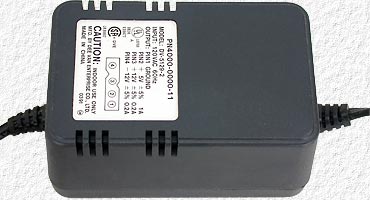

DV-5129-2

Input:120 VAC
Output:
+ 5 VDC   1.0 Amp
+/−12 VDC   0.2 Amp

1.07kgQty: 1$20
(Reserved for Photo)

Commodore
251053-02

Input:117 VAC
Output:  5 VDC   8.5W   (1.7A)
9 VAC    9 VA   (1.0A)

1.49kgQty: 1$10

Switching Table Top / Wall Wort

Table Top - LinearTable Top / Wall Wort - SwitchingTable Top - AC OutputWall Wort - AC Output

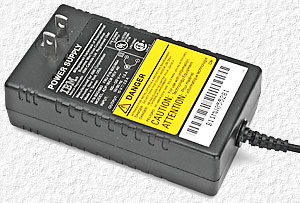

IBM 60G1683

Input:100-120 VAC
Output: 15 VDC  2.0 Amps

0.29kgQty: 1$20

WYSE PSM-571S

Input:120 VAC
Output: 19.5 VDC  1.8 Amps

430gQty: 1$20

GEO #GSP-152

Input:110-220 VAC
Output: 13.8 VDC  2 Amps

Note: Original output voltage was 15V and supply has been modified to provide 13.8V.

0.53kgQty: 1$20

HP 0950-3490

Input:100-240 VAC
Output: 24 VDC  0.5 Amps

0.28kgQty: 1$10

PSA15W-120

Input:100-240 VAC
Output: 12 VDC  1.25 Amps

0.25kgQty: 1$10

Table Top - AC Output

Table Top - LinearTable Top / Wall Wort - SwitchingTable Top - AC OutputWall Wort - AC Output

Texas Instruments
Adapter Model AC9500C

Input: 120 VAC
Output:
  8 VAC   1.0 VA (0.125A)
16 VAC    36 VA (2.250A)

0.79kgQty: 1$10

Wall Wort - AC Output

Table Top - LinearTable Top / Wall Wort - SwitchingTable Top - AC OutputWall Wort - AC Output

Northern Telecom
N.E. 2012B Class 2 Transformer

Input: 105-125 VAC

Output: 15-18 VAC   2.25 VA (A)
O.C. Volts = 26V

?gQty: 5$5 ea. or 5/$20 New Old Stock

Computer Peripherals
PN. AA082A Model A48082000

Input: 120 VAC 22W

Output:   8 VAC   2A

with 5mm Coaxial Plug

2−1/4" x 2−1/2" x 2"h

0.40kgQty: 2$10 ea. or 2/$15
The following 120V AC Output Wall Wort Transformers are also available:
Qty 2 5.7 VAC 240 mA $6 ea.
2/$10
5/$20
Qty 1 6.5 VAC 250 mA
Qty 1 8.0 VAC 100 mA
Qty 1 9.0 VAC 500 mA
Qty 1 16.0 VAC 250 mA
Qty 1 18.2 VAC 9.1VA (500 mA)
Qty 1 20 VAC 10VA (500 mA)

0.76kgQty 532 VCT  & guessing about 0.5 to 1.0A

A fairly large Wall Wort with a 2.25" x 3.5" base,
2" x 2.5" transformer section and 3.5" height (not including the AC plug). The output cord is cut off, but the housing can be opened by removing 4 rivets to add whatever wiring is needed.

Output is 35V open circuit, 33V supplying 0.54A and 31.2V supplying 1.02A which, using the 10% voltage drop rule, makes the output rating about 1 amp.
