Misc. Electronic Components & Assemblies

Ceramic / Porcelain
Standoffs, Insulator's & Feed-Thru's

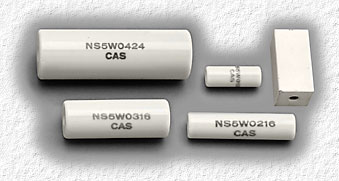

Standoffs
Qty P/N      L x Dia. Thread Each
2 NS5W0105 ⅝" x ⅜" dia. #6-32 $2 ea.
3 NS5W0106  NEW   ¾" x ⅜" dia. #6-32
2 NS5W0108  NEW   1" x ⅜" dia. #6-32
4 NS5W0110 1¼" x ⅜" dia. #6-32
1 NS5W0112 1½" x ⅜" dia. #6-32
2 NS5W0116 2" x ⅜" dia. #6-32

3 NS5W0208  NEW   ⅝" x ½" dia. #8-32 $2.50
ea.

10/$20
3 NS5W0205  NEW   1" x ½" dia. #8-32
67 NS5W0212  NEW   1½" x ½" dia. #8-32
4 NS5W0216  NEW   2" x ½" dia. #8-32

4 NS5W0308  NEW   1" x ¾" dia. #10-32 $3.00
6 NS5W0316  NEW   2" x ¾" dia. #10-32 $3.00
1 NS5W0424  NEW   3" x 1" dia. #10-32 $4.00

6 Square 1½" x ¾" sq. #10-32 $3.00



 NEW  Egg Insulators
Qty Size Cost
20 1½" x 1" $2 ea.  20/$30

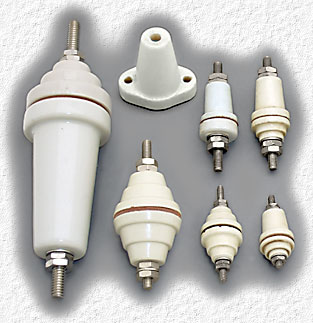

Feed-Thru Insulator's
Left Side
Qty H x Dia. Each
2 4" x 1⅝" dia.  NEW   $15
Top Row - Left
0 1½"h x 1¾" x 1⅛" oval base
Johnson No.20.		 SOLD
0 1⅛"h x 1⅛" x ¾" oval base
Johnson No.22.		 SOLD
Top Row - Center & Right
1 (Top h is ⅞") 1⅛"O.L. x ¾" dia. $4
1 Similar to above but 1¼"O.L.
3 (Top h is ⅞") 1¼"O.L. x ¾" dia.
Bottom Row - Left to Right
1 1¾" x 1¼" dia.  NEW   $5
0 1" x ¾" dia. SOLD
0 1" x ⅝" dia. SOLD
NEW  Johnson 136.0107-001 antenna insulator, 7" x 1" dia. w/ 1/4" holes.
Qty 4$12 ea.2/$204/$35

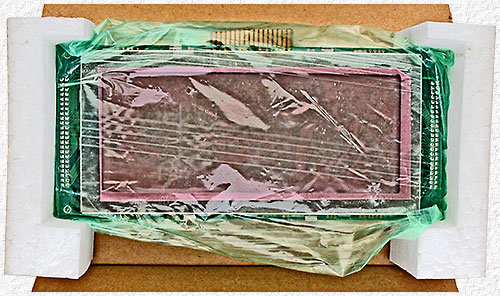

EPSON
EA-Y40080AT
8 line x 40 char./line
LCD Display

 NEW Qty: 1$15

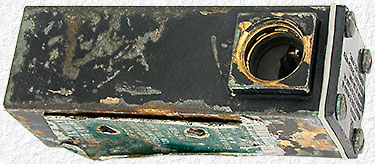

Proximity Switch

General Equipment & Mfg. Co.  Model 43-100-D.
Heavy Duty Industrial Magnetic Proximity Switch,
SPDT rated for 1250 Watts at 120, 240 & 480 VAC.

.620kgQty: 1$10

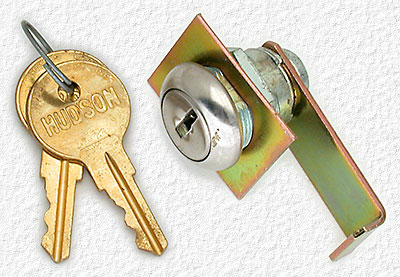

Key & Lock

Removed from next to new equipment
and can be used for just about anything.
For 3/4" hole & material up to 1/4" thick.
1 key / lock and all are keyed the same.

Qty: 9$2/setAll 9/$12

0.065kg ea.

NE13A Lamp

Qty: 1$10

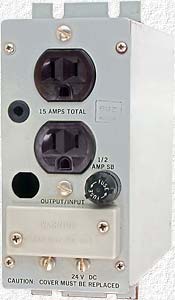

Telephone Ringer
Power Supply

Input: 24 VDC
Output: 90 VAC 20 Hz

Qty: 1$20

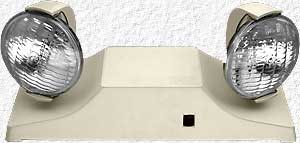

Dual-Lite Emergency Light

With  NEW  lamps and working batteries when listed, but
3 new Gates 2 Volt rechargeable cells will likely be
required by the time this sells as it's been a few years.

Qty: 1$25

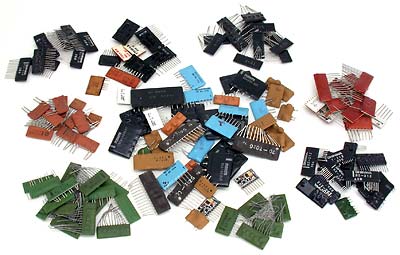

Over 139 Microcircuits

114 are  NEW  and are for various VHF & UHF
commercial radios & equipment.
The rest are used circuits removed from various
equipment.

I have no data sheets or info to help me use these circuits, but a good deal for anyone that has info or can use them as some were found listed for $10 to $18 each.

$30

Click HERE for a list of the circuits.

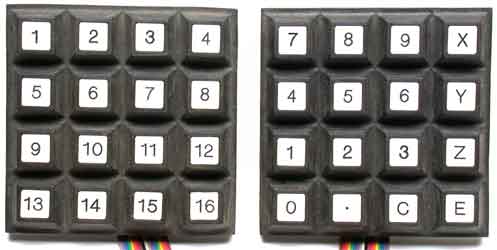

Style AStyle B

Micro Switch #16PX1-11 Weather Proof Keypads

$5 ea.   –   $8/pair (1 style A + 1 style B )   –   $12 for 2 pair   –   $5/pair for 3 or more pairs

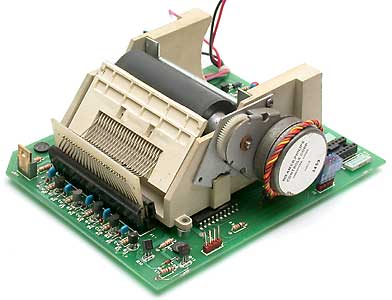

TELPAR

Model PL-20LY
20 column Thermal Printer

12 VDC operation.
Has an Intel 8048 micro controller
and an 8 Bit Parallel Data Interface
telpar20-notes.pdf has additional info.

Qty: 18$5 ea.

0.40kg5/$2010/$30

 NEW  TELPAR 40 Thermal Printer

This is a brand new printer mechanism complete with
PS-40 Thermal Printer Specification Sheet,
5 x 7 Dot Matrix Thermal Print Head Specifications
and printer controller documentation with a schematic
and other information required to make a controller.

Qty: 1$50

(new price in 1976 was about $400
Also a Telpar power supply that provides
the required printer voltages for $10 more.

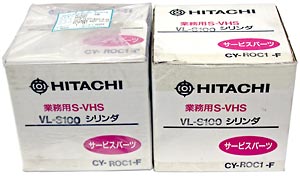

Replacement
HITACHI CY-ROC1-F
S-VHS Heads

 NEW

Qty: 2Both for $75
