Meters for Sale

If indicated, use "M#" or "EM#" to specify meters when ordering.

Meters are USED unless noted as NEW . Dimensions are face Height x Width.
F.S. is of basic meter movement spec. Meter F.S. is also provided if different from basic meter movement spec.

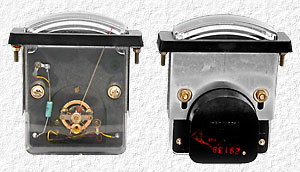

⅝" × 2½" Simpson Edge View Panel Meters with 1" × 3¼" Bezel. Mounting hole distance is 2-15/16" $10 ea.
			Movement
M#	Qty	Scale	F.S.	ohm	Notes
EM1	2	0 – 10 Volts DC	1 ma	17	Internal 10K resistor makes F.S. = 10 VDC Meter movement alone is 1 mA or 17mV F.S.
EM3	2	0 – 150 Volts AC	1 ma	27	Internal rectifier & 150K resistor makes F.S. = 150 VAC Meter movement alone is 1 mA or 27mV F.S.
EM7	2	Red–Green–Red	100 µA	1150	F.S. = 100 µA or 115 mV

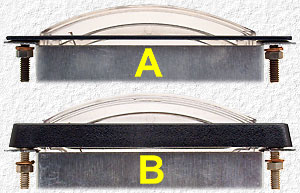

Please specify desired bezel type, A or B, when ordering. Bezels are nice to mask poorly cut panel openings and hide mounting screws. Bezel type A is a flat metal trim plate. Sorry - There are no more metal trim plates available, however they may still be available from Simpson. Bezel type B is a 1/4" raised plastic moulding.

3⅛" × 1¼"

Shielded

A very nice high quality meter.

F.S. = 200 µA / 110 ohm

EM14Qty: 1$10

1¾" × 1¾"

2⅜" × 2⅜"

1½" Mtg. Hole

F.S. = 100 µA / 1770 ohm

(Broken Lens)

M5Qty: 1$1

2−1/8" Mtg. Hole

F.S. = 50 µA / 2740 ohm

(Broken Lens)

M13Qty: 1$1

2−3/8" × 2−9/16"

2⅛" Mtg. Hole

(Broken Lens)

F.S. = 1 ma

Meter F.S. = 10 ma / 3.5 ohm

M14Qty: 1$5

Like New

F.S. = 1 ma

Meter F.S. = 15 VDC / 15K ohm

M15Qty: 1$10

Like New

F.S. = 1 ma

Meter F.S. = 150 ma / 0.66 ohm

M16Qty: 1$10

2−3/8" × 2−13/16"

2−3/16" Mtg. Hole

with 1−3/4" × 3−1/8" Bezel
Bezel Opening = 1-9/16" × 3"

F.S. = 1 ma / 58 ohm

M18Qty: 1$15

2⅝" × 2⅝"

2−1/16" Mtg. Hole

Like New

F.S. = 50 µA / 1720 ohm

M19Qty: 1$10

Also a –

F.S. = 1 mA / 114 ohm
Armaco Meter

Qty: 1$5

2−3/4"

2−1/4" Mtg. Hole

F.S. = 50 µA / 1550 Ω

M22Qty: 1$5

2−11/16" × 4"

2−3/16" Mtg. Hole
Triplet Model 320R

F.S. = 50 ma / 1.0 ohm

M25Qty: 1$15

2⅛" Mtg. Hole
Simpson Illuminated

F.S. = 100 − 0 − 100 µA DC / 1220 Ω

M24Qty: 2$15 ea.

3" × 3½"

2¾" Mtg. Hole

Like New

F.S. = 50 µA / 2520 ohm

M27Qty: 6$50 ea.

with 2¼" × 3⅞" Bezel

for 2−1/8" × 3−11/16" cut out

These are reserved for personal projects, however if nothing else will do I may make a few available if one is willing to pay the price
( which is still less than the cost of an equivalent new meter )
