Audio Related Items

McCurdy Audio Boards

Have not had the time to investigate and find out more about these boards and what connections or input & output levels are. If nothing else, they are a great source for I.C.'s, transistors, regulators, pots, capacitors, etc.

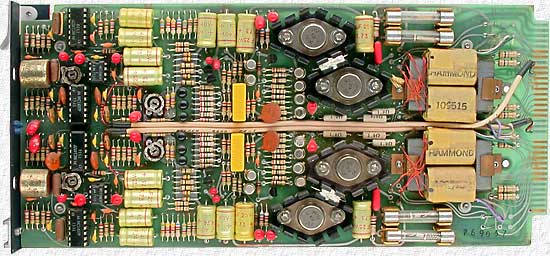

PC299 Audio Board

Qty: 4$20 ea.

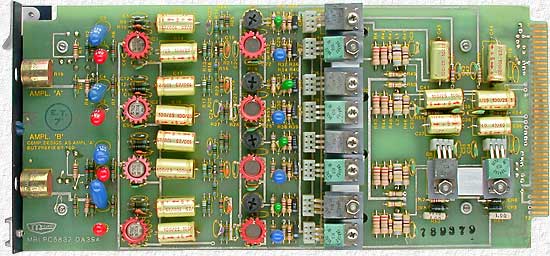

PC5832 DA394 Audio Board

Qty: 2$20 ea.

PC33011 Audio Board

Qty: 7$20 ea.

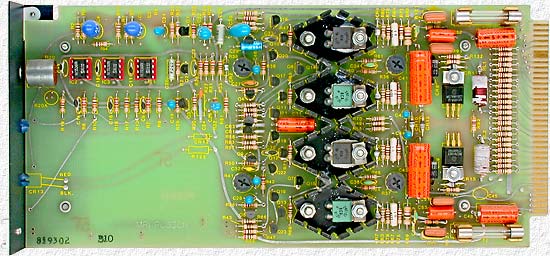

PC33010 with
PC3315 Audio Board

Qty: 1$25 ea.

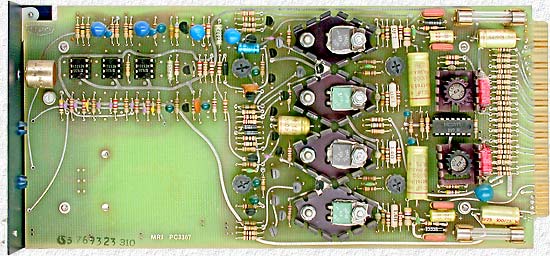

PC3307 Audio Board

Qty: 18$20 ea.

plus 6 more modified with
3 terminal voltage regulators
(like PC33011 board above).

Qty: 6$20 ea.

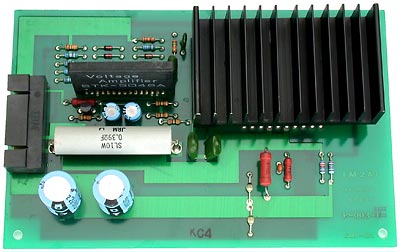

100 Watt Audio Amp ?

STK-3048A Voltage Amplifier
STK-6153    Power  Amplifier

IM2A1 printed on the board may be a part #.
P-003-F is printed on the board top side &
P-003-B is printed on the board bottom.

These appear to be new, unused boards.

Qty: 20$40 each

Searches have all lead to Chinese web sites which was of little help. No data sheets have been found for the two I.C.'s, but several circuit schematics were found at http://www.art-audio.com/diybbs1/cgi-bin/topic.cgi?forum=1&topic=601 and http://www.sldzc.com.cn/new_page_81.htm

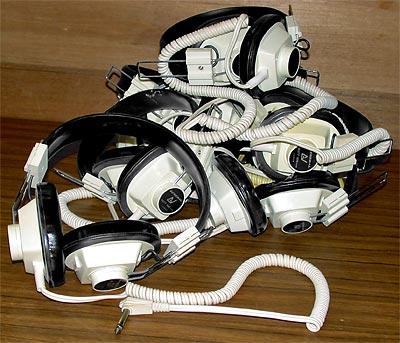

General AV #6T7

600 ohm Headphones

These came from a Speech Lab and have
two 8 ohm ear phones in series with a 560 ohm resistor to achieve their 600 ohm impedance.

Cords are defective, but easily replaced and headsets can be wired for mono or stereo.

 Excellent low cost headsets for projects.

Qty: 9$5 ea.

(The 8 Ω speakers are worth the price alone and I will even remove them for you to save on shipping costs
if they are all you want.)

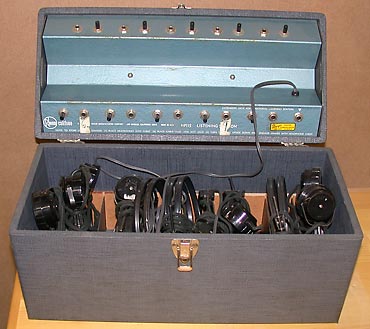

Rheem Califone
HP115 Listening Station

10 station system with 8 headsets

 FREE

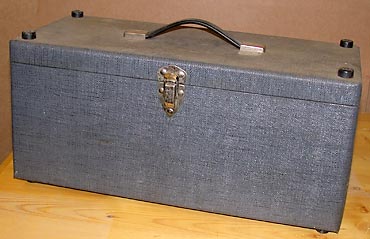

This nice wooden case is free when you purchase the 8 headsets inside it for little more than $2 each.
- or -
how about the case PLUS the 8 headsets for FREE when you purchase the eleven 1/4" phone jacks for less than $2 each.

A Good Deal Either Way

Qty: 1$20
