AC Line EMI Filters

SIEMENS

B84104-B2-A10

IEC320 AC Input Connector
115/250 VAC

2 x 10 mhy - .1 ufd - 2 x 3300 pfd

Qty: 1$5

CORCOM
CLICK to Visit!

1K1

115/250 VAC50-400 Hz

 NEW Qty: 3$5 ea.

SAE
CLICK to Visit!

LGA3A-1

Qty: 1$3

TOKIN  MR-2021

250 VAC50-60 Hz

Qty: 1$3

DIT

1D-0242-S

IEC320 AC Input Connector
120/250 VAC50-60 Hz

.047 ufd - (2) 2400 uhy - (2) 2200 pfd

Qty: 1$5

JRC  LF 203UDI3EF1

Looks identical to Tokin photo.

250 VAC50-60 Hz

Qty: 1$3

3EF1

IEC320 AC Input Connector
120/250 VAC50-60 Hz

.009 ufd - (2) 1000 uhy - (2) 2800 pfd

Qty: 16$5 ea.

DELTA
CLICK to Visit!

03GEEG3H

IEC320 AC Input Connector
120/250 VAC50-60 Hz

.01 ufd - (2) 2500 uhy - (2) 3300 pfd

Qty: 1$5

DELTA
CLICK to Visit!

03DEEG3R

IEC320 AC Input Connector
120/250 VAC50-60 Hz

.033 ufd - 2 x 180 uhy - 2 x 2200 pfd

Qty: 1$5

TDK

ZUG2203-11AN

120/250 VAC50-60 Hz
2 x 2200 pfd / 2 x .7 mhy / 2 x .047 ufd

Qty: 1$5

DIT

1B3-S32

120/250 VAC50-60 Hz
2 x 2200 pfd / 2 x 1.2 mhy / 2 x .047 ufd

Qty: 1$5

SAM IL

NFU-103

120/250 VAC50-60 Hz
2 x 2200 pfd / 2 x 1.2 mhy / 2 x .047 ufd

Qty: 1$5

POTTER

610-G3E

IEC320 AC Input Connector
120/250 VAC50-60 Hz

.01 ufd - (2) 1100 uhy - (2) 2200 pfd

Qty: 1$5

SPRAGUE

3JX5421A

IEC320 AC Input Connector
120/250 VAC50-60 Hz

Qty: 2$5 ea.

CORNELL DUBILIER

NF20968-3

Qty: 1$4

DELTA
CLICK to Visit!

03DCHW3

IEC320 AC Input Connector
120/250 VAC47-63 HZHI-POT TESTED

Qty: 1$10

3B5

For HP style AC Power Cord

115/230 VAC50-400 Hz

TEST 2100 VDC

Qty: 1$5

3EP3

120 VAC50-60 Hz

3 x .27 ufd - 2 x 7 mhy - 2 x 2800 pfd

Qty: 1$5 ea.

F2187 (very similar to 5K1 that's pictured except with
 U shaped push-on terminals for 2 connections per terminal.)

115/250 VAC50-400 Hz

Qty: 1$6 ea.

125g

6EF2

IEC320 AC Input Connector
120/250 VAC50-60 Hz

Qty: 1$6

Schaffner

FN322-6/01

IEC320 AC Input Connector
120/250 VAC50-60 Hz

.015 ufd - (2) 800 uhy - (2) 2200 pfd

Qty: 2$6 ea.

DELTA
CLICK to Visit!

06GEEG3E

IEC320 AC Input Connector
120/250 VAC50-60 Hz

.1 ufd - (2) 800 uhy - (2) 2200 pfd

Qty: 1$6

JMK
CLICK to Visit!

AA-0276-10B

125/250 VAC

Qty: 2$8 ea.

SPRAGUE

10JX52

125 VAC120 Hz400 VDC

Qty: 2$8 ea.

10R6

115/250 VAC50-400 HZ

Qty: 1$10

TOKIN

VG-215B

250 V AC/DCTEST VOLTAGE = 1500

Qty: 3$10 ea.3/$25

F1701  000240

Qty: 1$12

20VB1

120/250 VAC50-60 HZ

 NEW Qty: 1$15

DELTA
CLICK to Visit!

20DCGT1G2-1

115/250 VAC50-60 HZ

HI-POT TESTED

Qty: 1$20

20K6

115/250 VAC50-400 HZ

Qty: 2$20 ea.2/$30

5
Amp

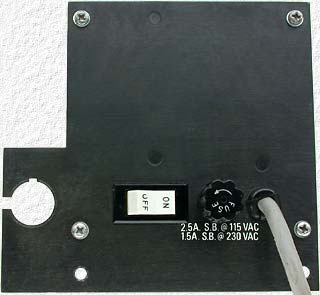

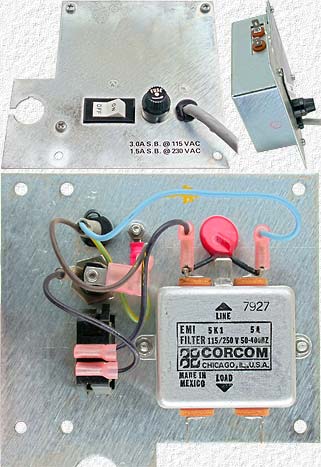

AC Line Input Filter Assembly 1

Enclosed AC input assembly has a 9 ft 3C#18 AWG Line Cord, Fuse, ON/OFF Switch, MOV and 5 Amp Corcom 5K1 Line Filter. Enclosure is 3-1/8" x 4-1/4".

Choice of Black or Silver.

Qty: 2$20 ea.

10
Amp

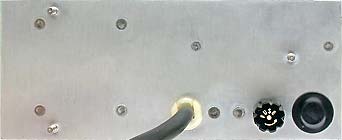

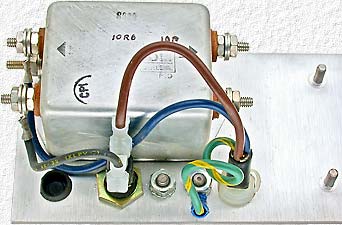

AC Line Input Filter Assembly 3

Mounting Plate is 3" x 7- 5/8"

AC input panel has a 9 ft 3C#16 AWG Line Cord, Fuse and 10 Amp Corcom 10R6 Line Filter.

A plastic filler plug in the 1/2" dia. hole next to the fuse holder can be removed for a second fuse holder or an ON/OFF switch.

The line filter is worth the price alone.

Qty: 1$20
